W11F Three Rollers Mechanical Plate Rolling Machine
- rolling machine
- cnc rolling machine
- W11S Three rollers Hydraulic Plate Rolling Machine
- W11F Three Rollers Mechanical Plate Rolling Machine
- Product description: High positioning Long service life Competitive price W11F Three Rollers Mechanical Plate Rolling Machine
Product introduction
W11F Three Rollers Mechanical Plate Rolling Machine
Rolling Machine Performance
The machine is asymmetric 3-roll mechanical and asymmetric type. It is easy for operation and maintenance.
Upper roll is driven by motor by means of reducer. And lower roll is moved vertically while the side roll is moved upper and down at an angle. It is capable of round rolling and pre-bending.
With beading rolls for groove making.
Rolling Machine Parameters
Model |
Max. thickness mm |
Max. width mm |
Workpiece Min.Dia. mm |
Diamete of top shaft mm |
Diamete of botiomshaft mm |
Bottom Roller Dia. mm |
Main motor
power
kw
|
W11F-1*1000 |
1 |
1000 |
130 |
95 |
95 |
95 |
0.75 |
W11F-1*1300 |
1 |
1300 |
135 |
100 |
100 |
100 |
1.1 |
W11F-1*1500 |
1 |
1500 |
145 |
105 |
105 |
105 |
1.5 |
W11F-1*2000 |
1 |
2000 |
2000 |
125 |
125 |
125 |
2.2 |
W11F- 2*1000 |
2 |
1000 |
135 |
110 |
110 |
110 |
2.2 |
W11F- 2*1500 |
2 |
1500 |
155 |
130 |
130 |
130 |
130 |
W11F- 2*2000 |
2 |
2000 |
165 |
140 |
140 |
140 |
2.2 |
W11F- 3*1000 |
3 |
1000 |
140 |
120 |
120 |
120 |
2.2 |
W11F- 3*1500 |
3 |
1500 |
150 |
135 |
135 |
135 |
2.5 |
W11F- 3*2000 |
3 |
2000 |
180 |
145 |
145 |
145 |
2.2 |
W11F- 3*2500 |
3 |
2500 |
200 |
150 |
150 |
150 |
3 |
W11F- 4*1000 |
4 |
1000 |
160 |
130 |
130 |
130 |
3 |
W11F- 4*1500 |
4 |
1500 |
180 |
135 |
135 |
135 |
3 |
W11F- 4*2000 |
4 |
2000 |
220 |
140 |
140 |
140 |
3 |
W11F- 4*2500 |
4 |
2500 |
280 |
150 |
150 |
150 |
4 |
W11F- 5*1000 |
5 |
1000 |
180 |
140 |
140 |
140 |
3 |
W11F- 5*1500 |
5 |
1500 |
220 |
150 |
150 |
150 |
4 |
W11F- 5*2000 |
5 |
2000 |
280 |
160 |
160 |
160 |
5.5 |
W11F- 6*1000 |
6 |
1000 |
300 |
145 |
145 |
145 |
4 |
W11F- 6*1500 |
6 |
1500 |
350 |
150 |
150 |
150 |
4 |
W11F- 6*2000 |
6 |
2000 |
400 |
160 |
160 |
160 |
5.5 |
W11F- 6*2500 |
6 |
2500 |
450 |
170 |
170 |
170 |
7.5 |

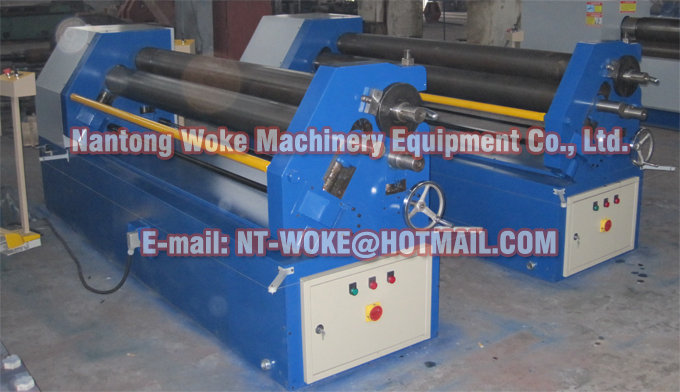

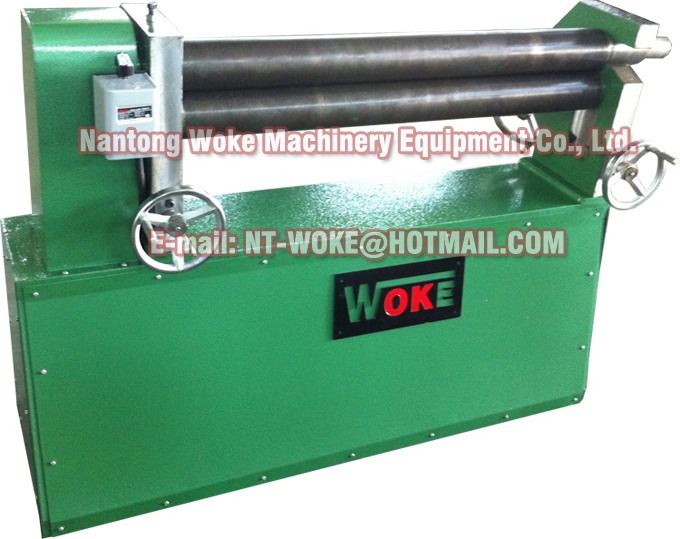

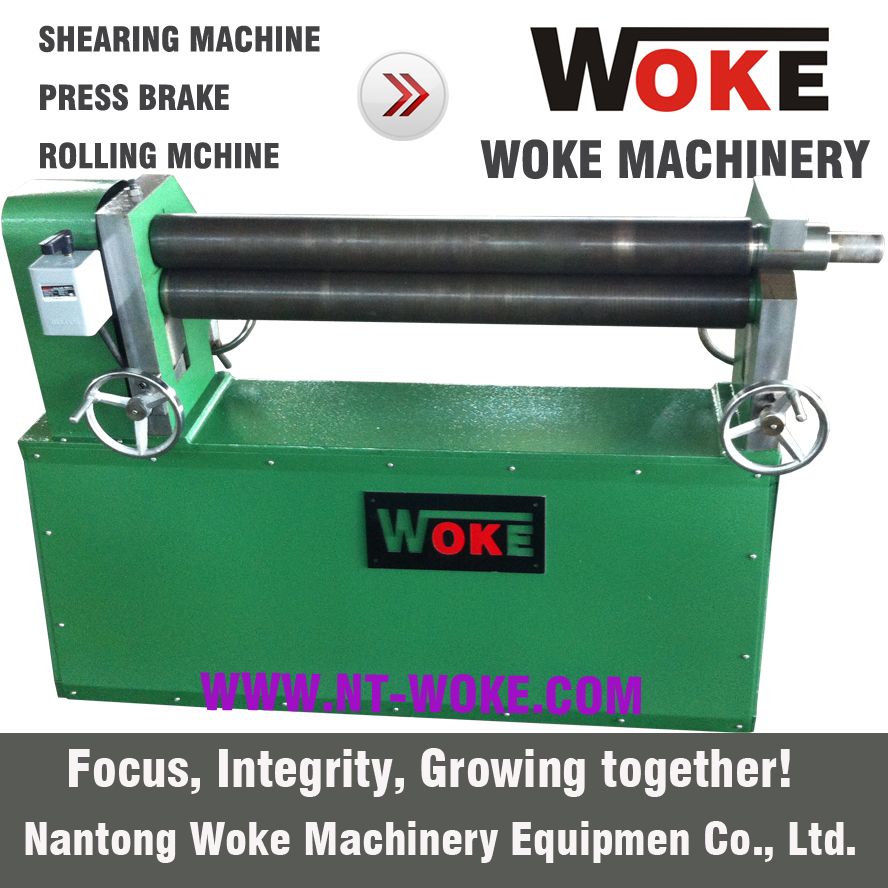

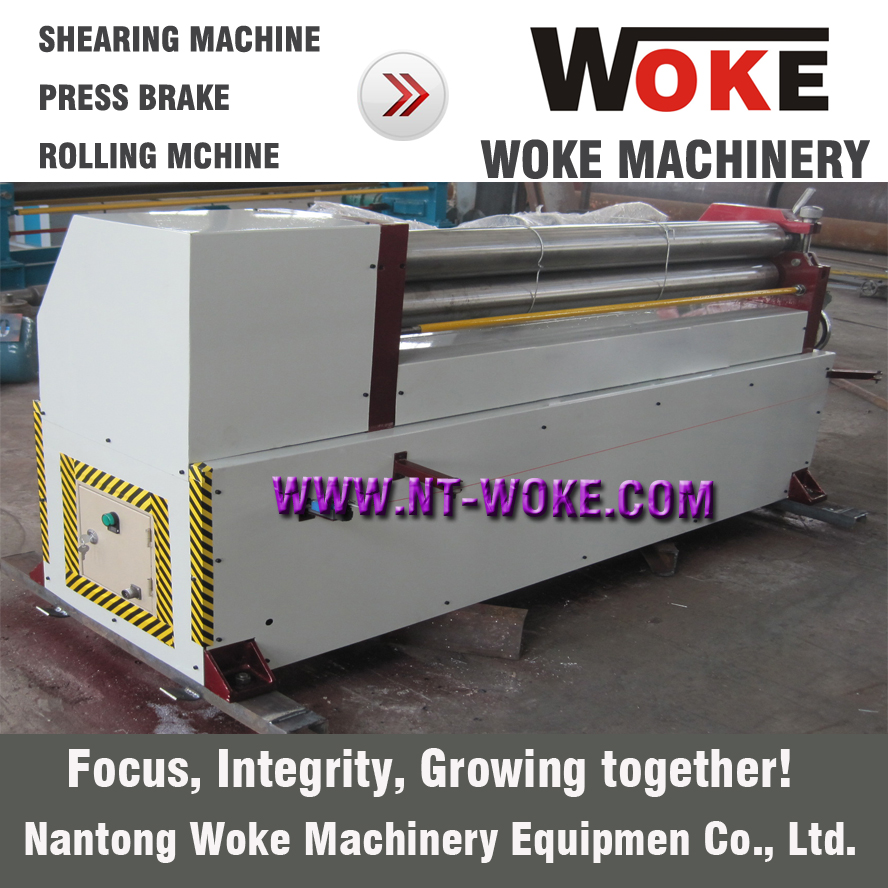

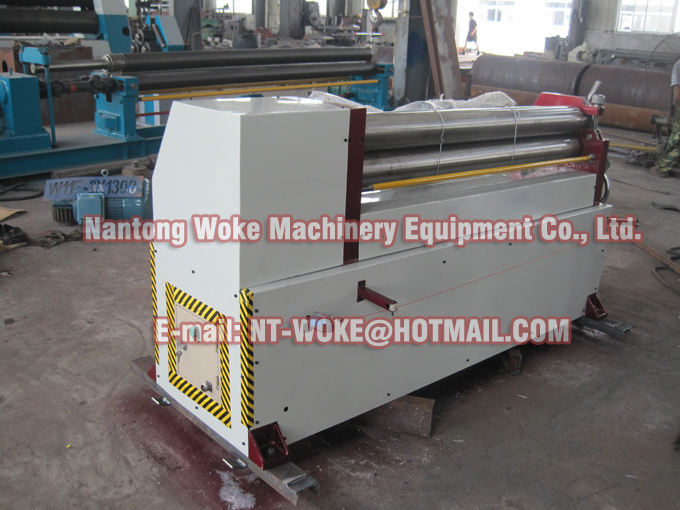

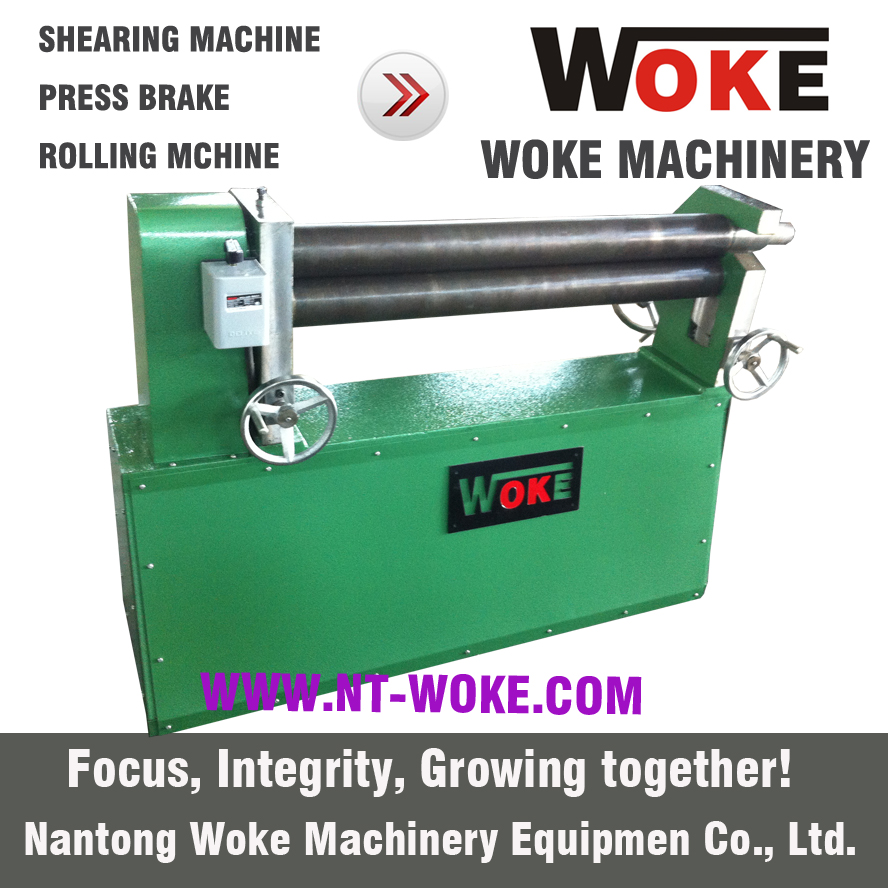

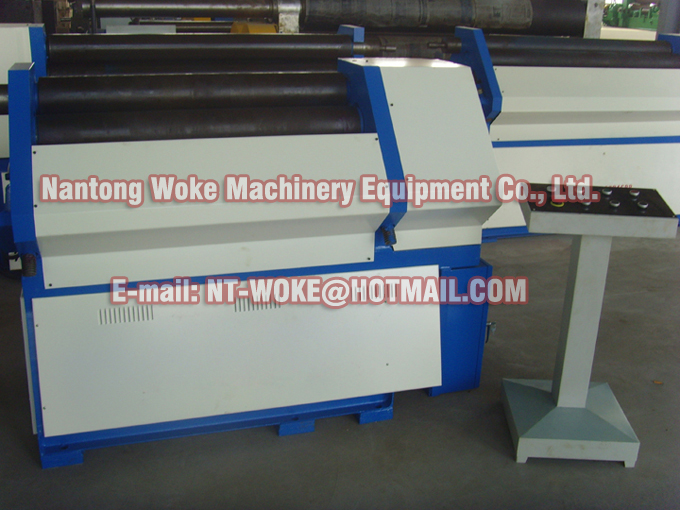

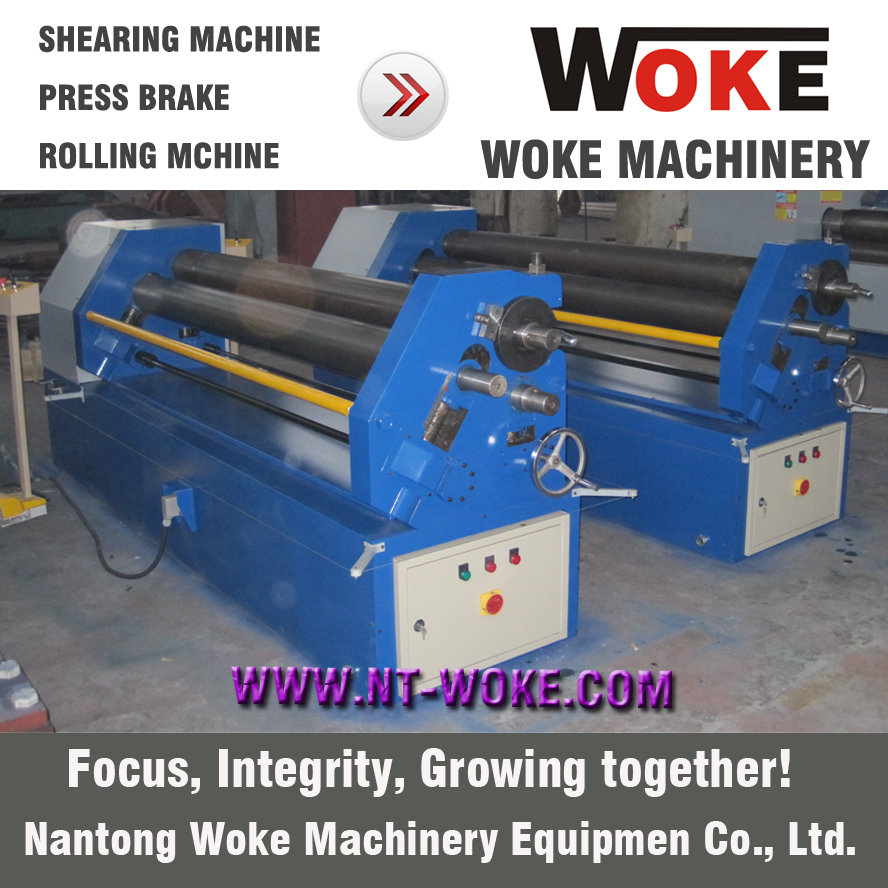

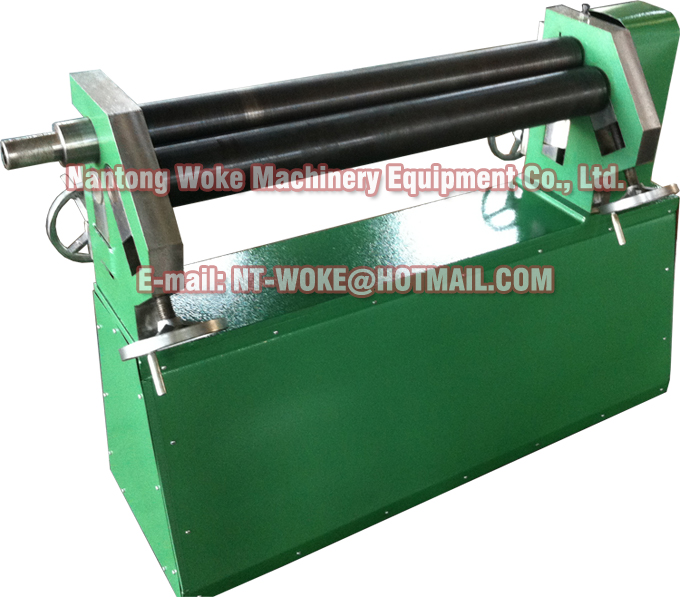

Rolling Machine View
