W11S Three rollers Hydraulic Plate Rolling Machine
- rolling machine
- cnc rolling machine
- W11S Three rollers Hydraulic Plate Rolling Machine
- W11 Three Rollers Mechanical Plate Rolling Machine
- Product description: High positioning Long service life Competitive price W11S Three rollers Hydraulic Plate Rolling Machine
Product introduction

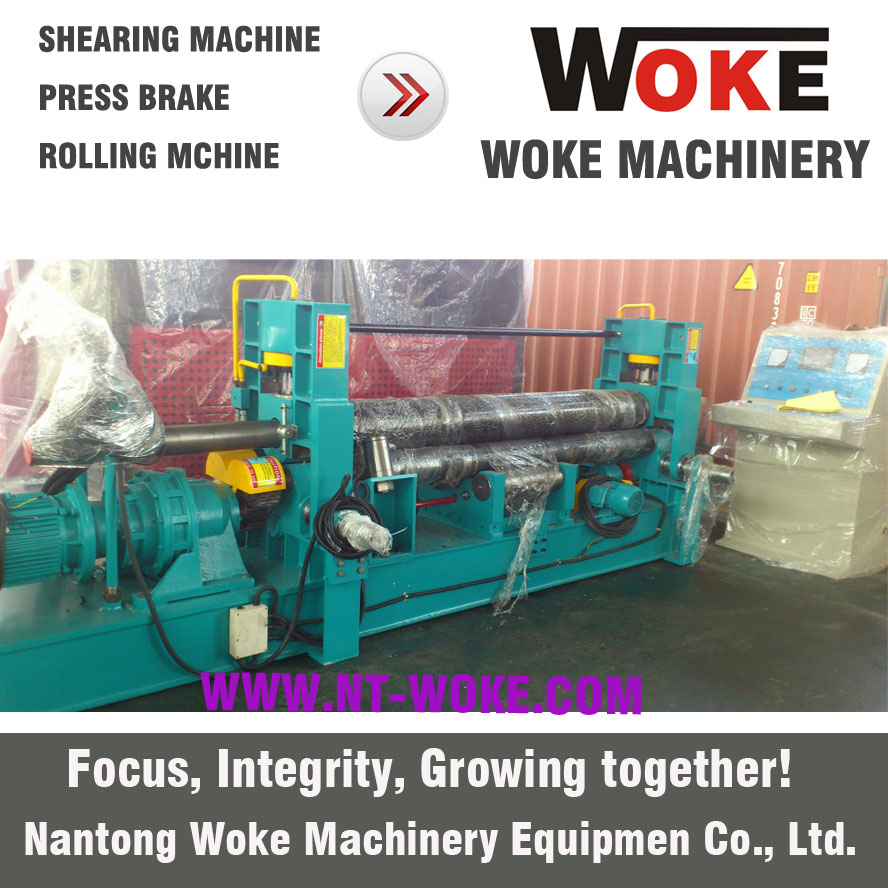

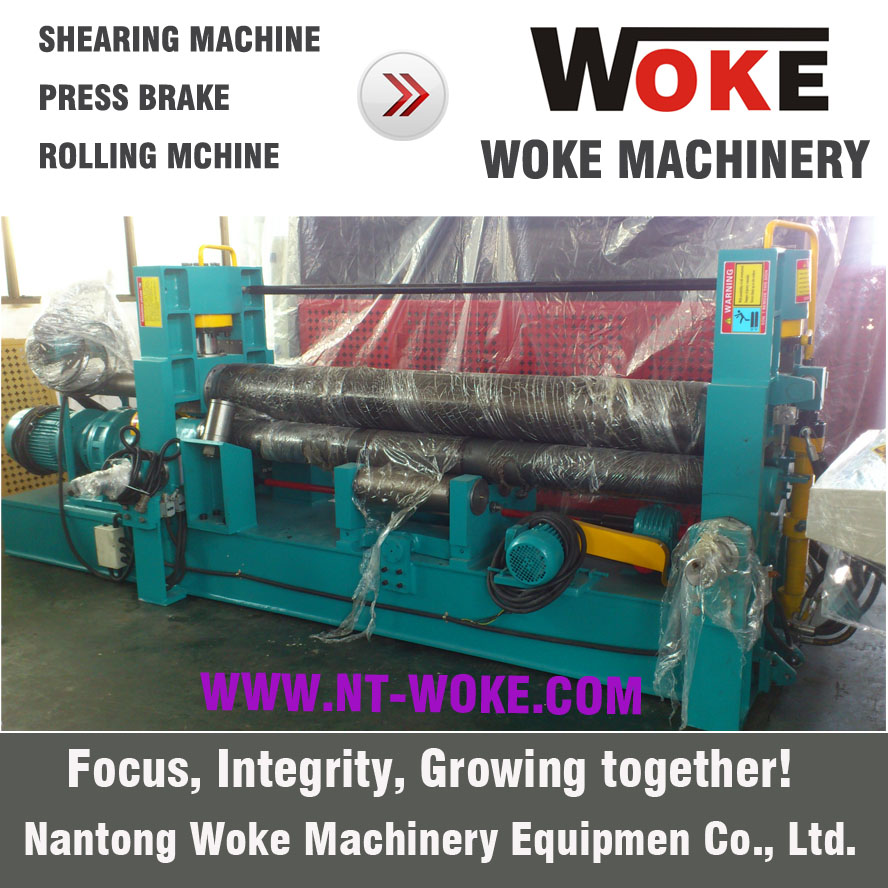

W11S Three rollers Hydraulic Plate Rolling Machine
Rolling Machine Performance
High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.
Numerical control, high producing efficiency, simple operation.
Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.
Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving.
Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.
Different use has different control way, like top numerical control and below numerical control.
Bend “O” “U” “R” types.
Rolling Machine Parameters
Model
Max. thickness
(mm)
Width
(mm)
Top
Roller
(mm)
Bottom
Roller
(mm)
Distance Of bottom
roller
(mm)
Motor (KW)
We-bend
Normal
Main
Hydraulic
Movement
W11S-6*2000
4.5
6
2000
195
125
160
3
2.2
0.75
W11S-6*2500
4
6
2500
220
135
180
4
2.2
0.75
W11S-8*1500
6
8
1500
175
125
160
3
2.2
0.75
W11S-8*2000
6
8
2000
220
125
180
4
4
0.75
W11S-8*2500
6
8
2500
235
135
180
4
4
0.75
W11S-8*3200
6
8
3200
245
145
200
7.5
4
0.75
W11S-10*1500
8
10
1500
215
135
180
4
2.2
0.75
W11S-10*2000
8
10
2000
235
135
180
4
2.2
0.75
W11S-10*2500
8
10
2500
245
135
180
4
2.2
0.75
W11S-10*3200
8
10
3200
280
145
200
7.5
4
0.75
W11S-10*4500
8
10
4500
360
200
330
18.5
7.5
4

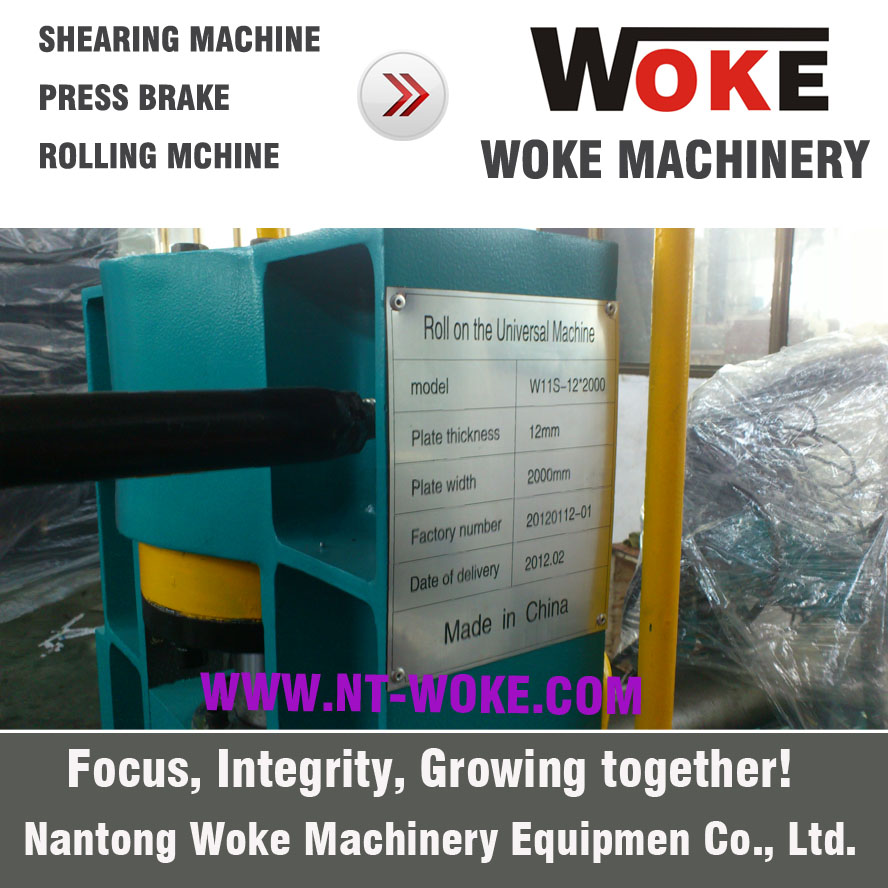

W11S-12*2000
10
12
2000
250
145
200
5.5
5.5
1.1
W11S-12*2500
10
12
2500
265
145
200
5.5
5.5
1.5
W11S-12*4500
10
12
4500
380
220
360
22
7.5
5.5
W11S-16*2000
12
16
2000
300
150
245
11
7.5
4
W11S-16*2500
12
16
2500
330
165
270
11
7.5
4
W11S-16*3200
12
16
3200
360
180
330
22
7.5
4
W11S-18*4500
16
18
4500
490
250
400
37
11
7.5
W11S-20*2000
16
20
2000
340
180
330
22
7.5
4
W11S-20*2500
16
20
2500
360
180
330
22
7.5
4
W11S-20*3200
16
20
3200
380
220
360
30
11
5.5
W11S-25*2000
22
25
2000
360
220
360
30
11
5.5
W11S-25*2500
22
25
2500
380
240
360
30
11
5.5
W11S-25*4000
22
25
4000
490
250
400
37
11
7.5
W11S-25*3200
22
25
3200
410
260
380
37
11
7.5
W11S-30*2500
25
30
2500
410
260
380
37
11
7.5
W11S-30*3200
25
30
3200
440
260
400
37
11
7.5

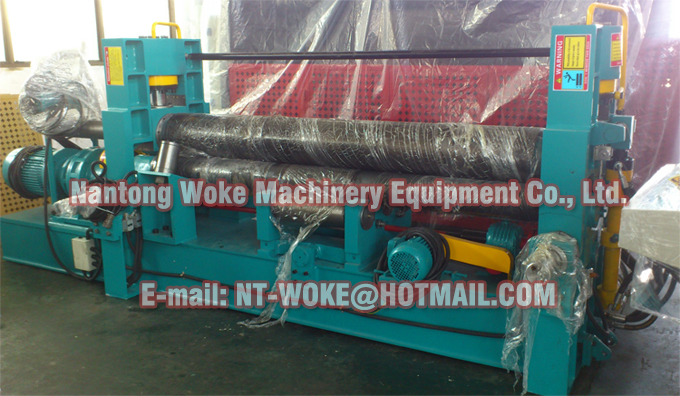

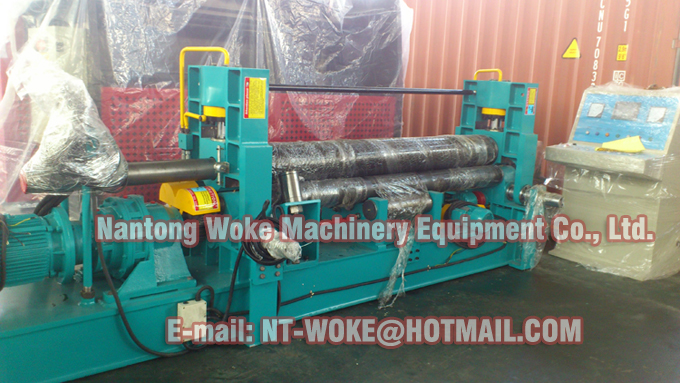

Rolling Machine View
