WE67K-200T-400T CNC Hydraulic Press Brake
- press brake machine
- bending machine
- Hydraulic bending machine
- CNC Hydraulic Press Brake
- Product description: Hydraulic press brake Hydraulic bending machine CNC Hydraulic press brake
Product introduction
WE67K CNC Hydraulic Press Brake
Press Brake Performance
1.Electro hydraulic servo system ,full loop controlling the synchronization of the upper beam.
2.Equip with mechanical crowning compensation on worktable and deformation compensation device on throat,
to make sure bending depth and precision

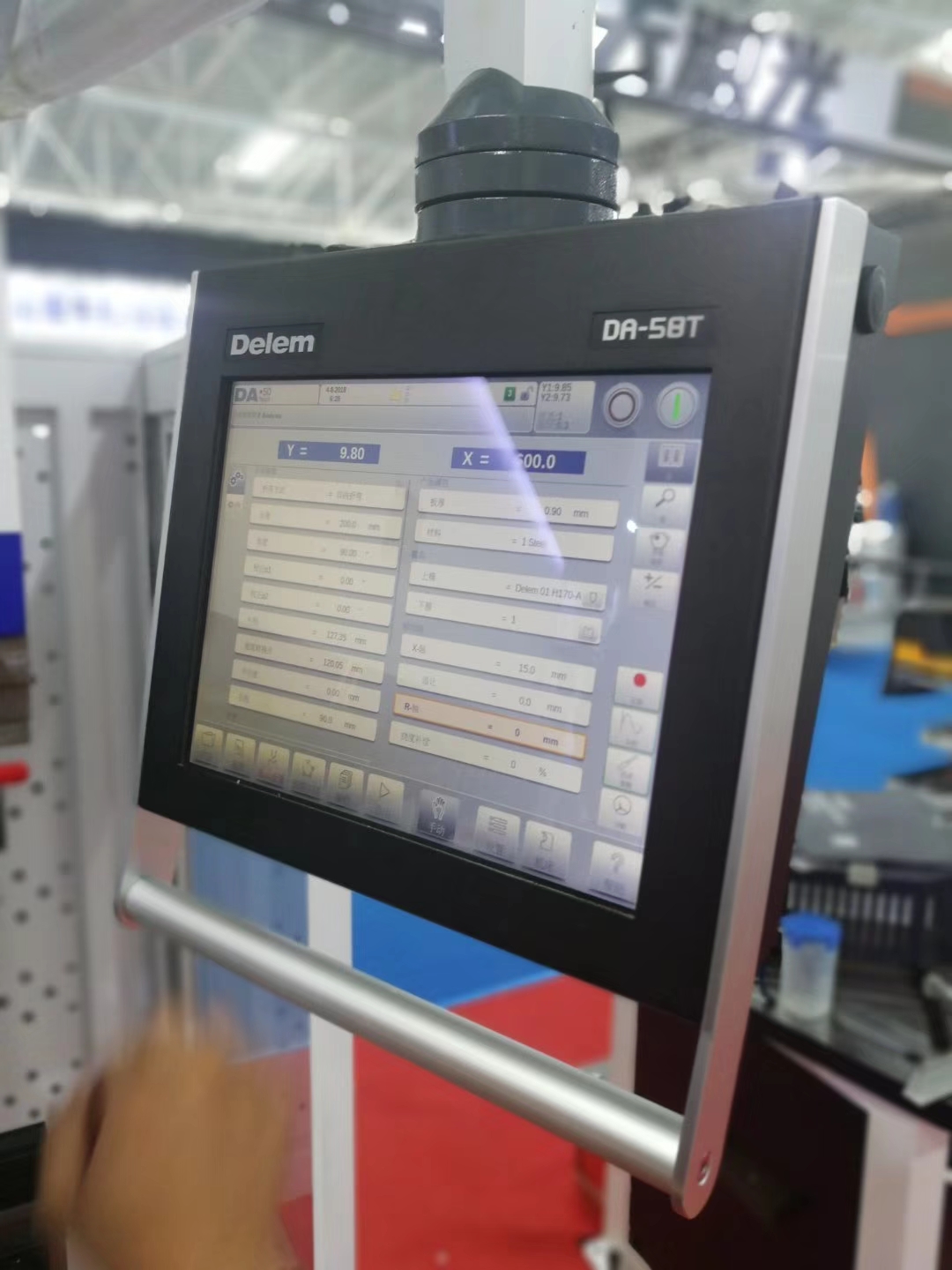

3.CNC control DELEM DA52S and optional configuration with DA56S / DA66T / DA69T .
4.Back gauge is driven by digital AC servo motor, moved by ball screw ,guided by linear guide
5.Back gauge mechanism can control :Y1, Y2, X+V axis CNC controller (3+1)
6.Back gauge system optional : 6+1 axes back gauge (Y1, Y2, X, R, Z1, Z2)
Model |
Nominal pressure |
Worktable length |
Distance between column |
Throat Depth |
Stroke |
Opening |
Motor |
Dimension |
Ton |
mm |
mm |
mm |
mm |
mm |
kw |
mm |
|
200T/3200 |
200 |
3200 |
2600 |
330 |
220 |
510 |
15 |
3450×1850×2900 |
200T/4000 |
200 |
4000 |
3200 |
330 |
220 |
510 |
15 |
4250×1900×3050 |
200T/5000 |
200 |
5000 |
4000 |
330 |
220 |
510 |
15 |
5000×1900×3160 |
200T/6000 |
200 |
6000 |
4700 |
330 |
220 |
510 |
15 |
6000×2100×3200 |
250T/3200 |
250 |
3200 |
2600 |
400 |
240 |
530 |
18.5 |
3450×2000×2900 |
250T/4000 |
250 |
4000 |
3200 |
400 |
240 |
530 |
18.5 |
4250×2000×3000 |
250T/5000 |
250 |
5000 |
4000 |
400 |
240 |
530 |
18.5 |
5000×2100×3400 |
250T/6000 |
250 |
6000 |
4700 |
400 |
240 |
530 |
18.5 |
6000×2100×3400 |
300T/3200 |
300 |
3200 |
2600 |
400 |
240 |
560 |
22 |
3450×2150×3300 |
300T/4000 |
300 |
4000 |
3200 |
400 |
240 |
560 |
22 |
4250×2280×3350 |
300T/6000 |
300 |
6000 |
4700 |
400 |
240 |
560 |
22 |
6000×2280×3560 |
400T/3200 |
400 |
3200 |
3200 |
400 |
250 |
600 |
30 |
3200×2280×3250 |
400T/4000 |
400 |
4000 |
3200 |
400 |
250 |
600 |
30 |
4000×2300×3600 |
400T/6000 |
400 |
6000 |
4700 |
400 |
250 |
600 |
30 |
6000×2350×4650 |

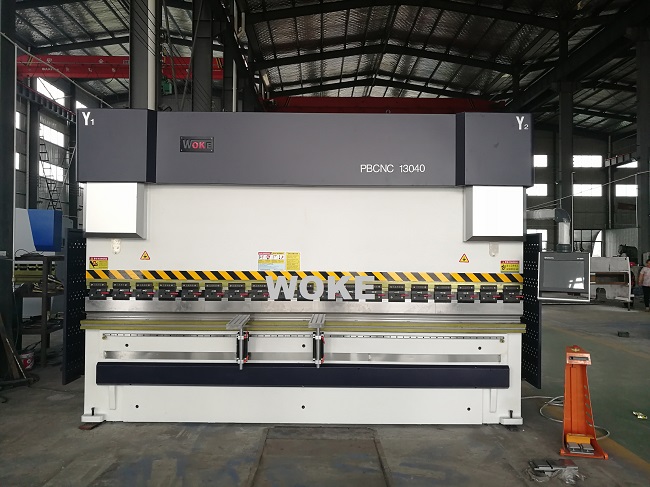

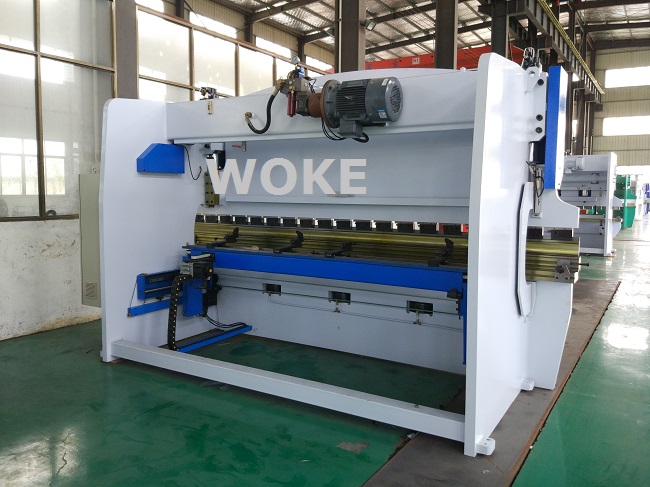

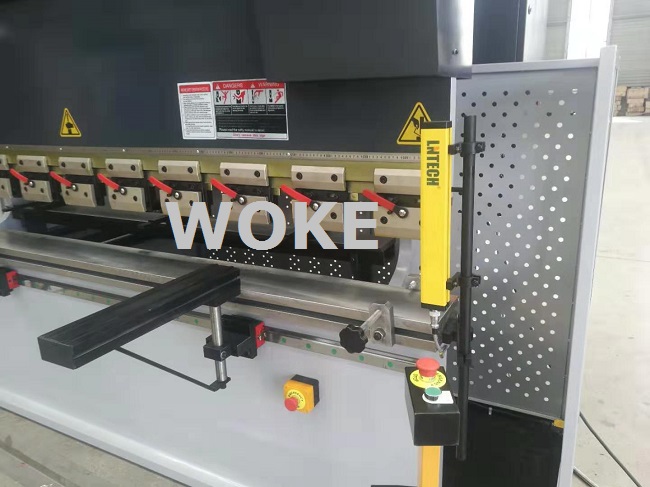

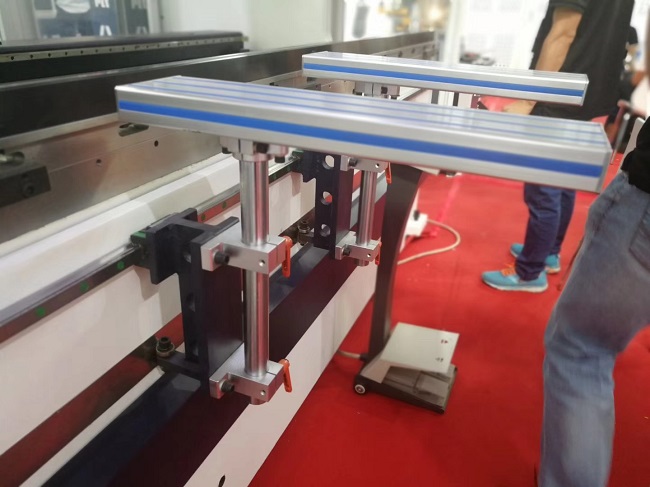

Press Brake View

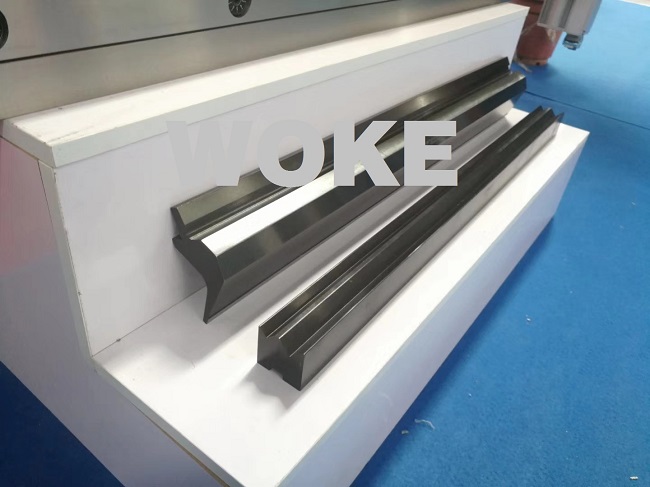

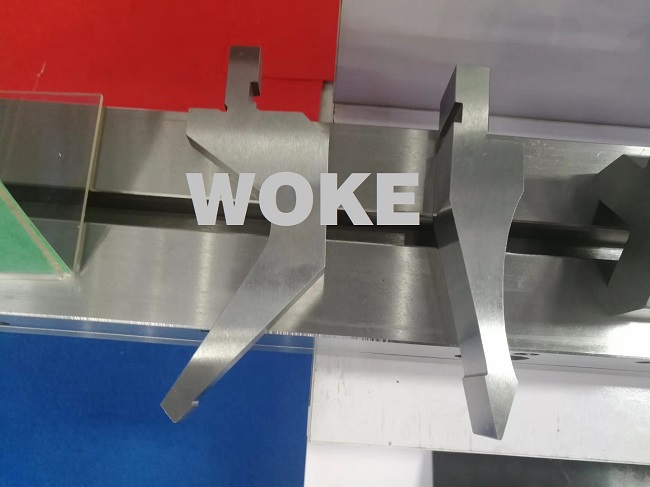

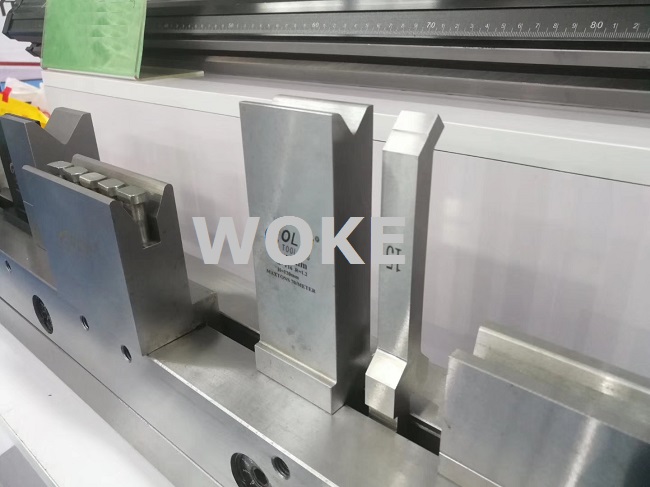

With standard bending tool, special tool is customized

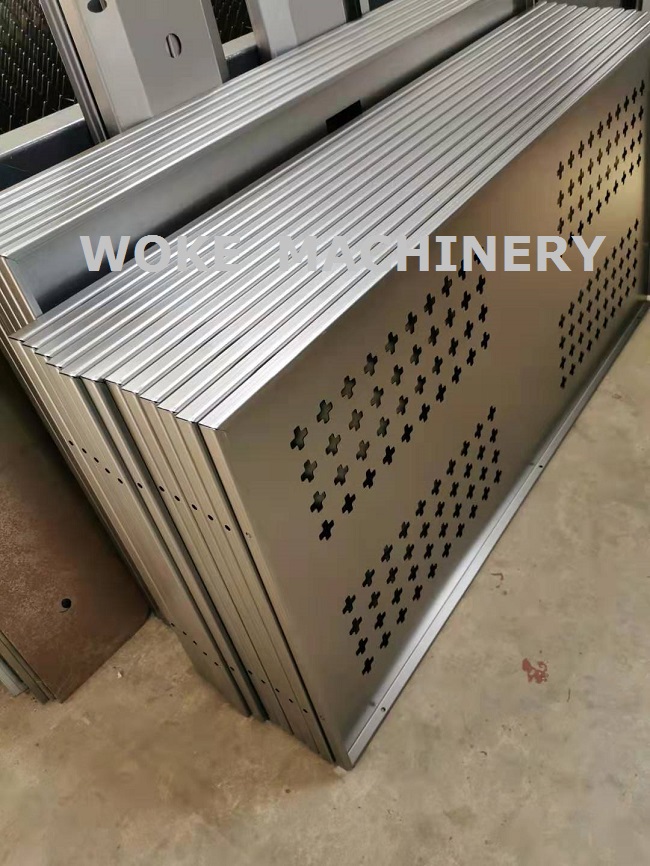

Bending samples by cnc press brake
