WE67K-40T-160T CNC Hydraulic Press Brake

cnc press brake machine
cnc bending press machine
Hydraulic cnc bending machine
CNC Hydraulic Press Brake
Product description: cnc bending press brake machine, Delem cnc system of more axis control Y1, Y2, X, R, Z,V
Inquiry

Product introduction

WE67K CNC Hydraulic Press Brake, Electro-hydraulic Servo Synchro

Press Brake Performance

1.Electro hydraulic servo system ,full loop controlling the synchronization of the upper beam.

2.Equip with mechanical or hydraulic crowning compensation on worktable and deformation compensation device on throat, to make sure bending depth and precision

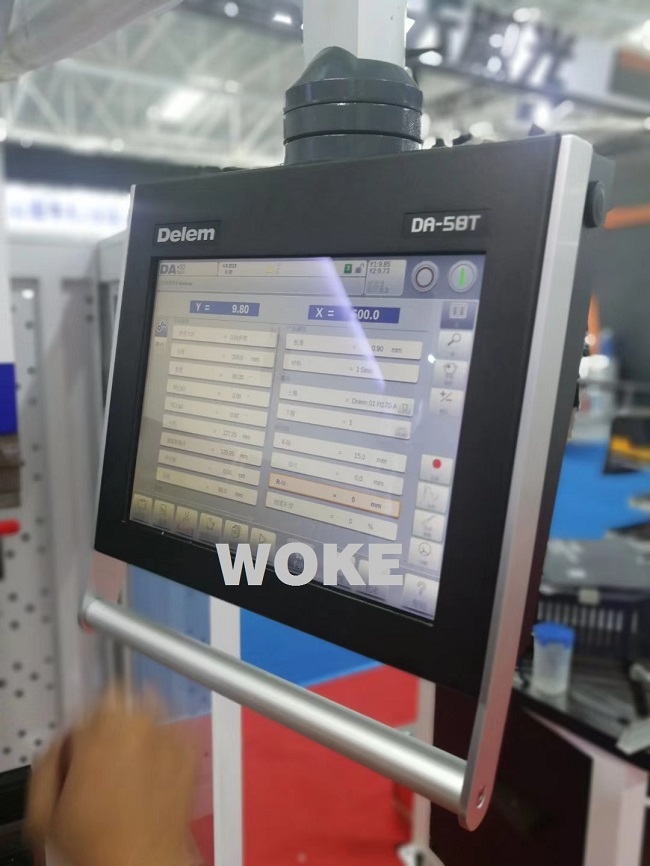

3.CNC control DELEM DA52S/DA58T and optional configuration with DA56S / DA66T / DA69T .

4.Back gauge is driven by digital AC servo motor, moved by ball screw ,guided by linear guide

5.Back gauge mechanism can control :Y1, Y2, X+V axis CNC controller (3+1)

6.Back gauge system optional : 6+1 axes back gauge (Y1, Y2, X, R, Z1, Z2)

Press Brake Parameters

Model

Nominal pressure

Worktable length

Distance between column

Throat Depth

Stroke

Opening

Motor

Dimension

Ton

mm

mm

mm

mm

mm

kw

mm

63T/2500

63

2500

2050

250

120

360

5.5

2750×1400×2180

63T/3200

63

3200

2600

250

120

360

5.5

3450×1400×2180

80T/2500

80

2500

2050

320

150

380

7.5

2750×1400×2350

80T/3200

80

3200

2600

320

150

380

7.5

3450×1400×2350

100T/2500

100

2500

2050

320

150

380

7.5

2750×1550×2480

100T/3200

100

3200

2600

320

150

380

7.5

3450×1550×2480

100T/4000

100

4000

3200

320

150

380

7.5

4250×1550×2600

125T/2500

125

2500

2050

320

150

380

7.5

2750×1550×2480

125T/3200

125

3200

2600

320

150

380

7.5

3450×1550×2480

125T/4000

125

4000

3200

320

150

380

7.5

4250×1550×2600

160T/2500

160

2500

2050

320

200

450

11

2750×1600×2650

160T/3200

160

3200

2600

320

200

450

11

3450×1600×2650

160T/4000

160

4000

3200

320

200

450

11

4250×1700×2650

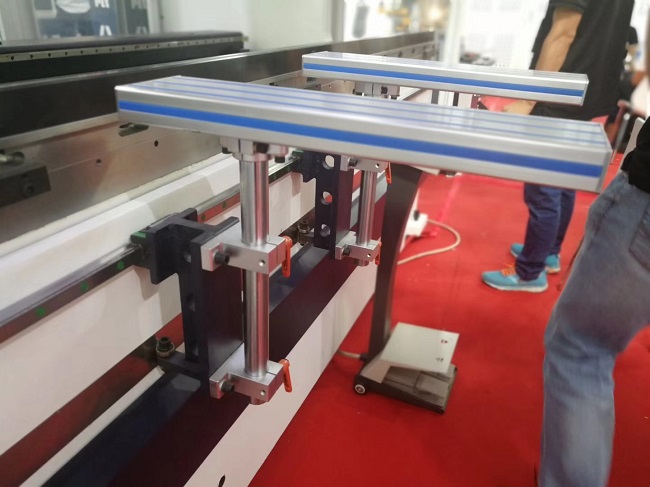

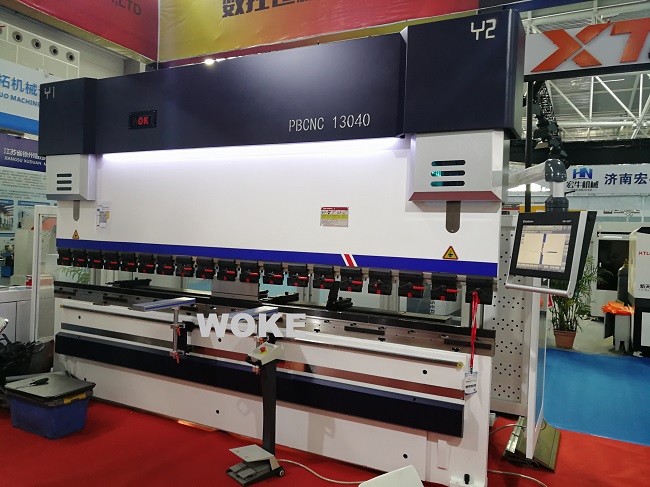

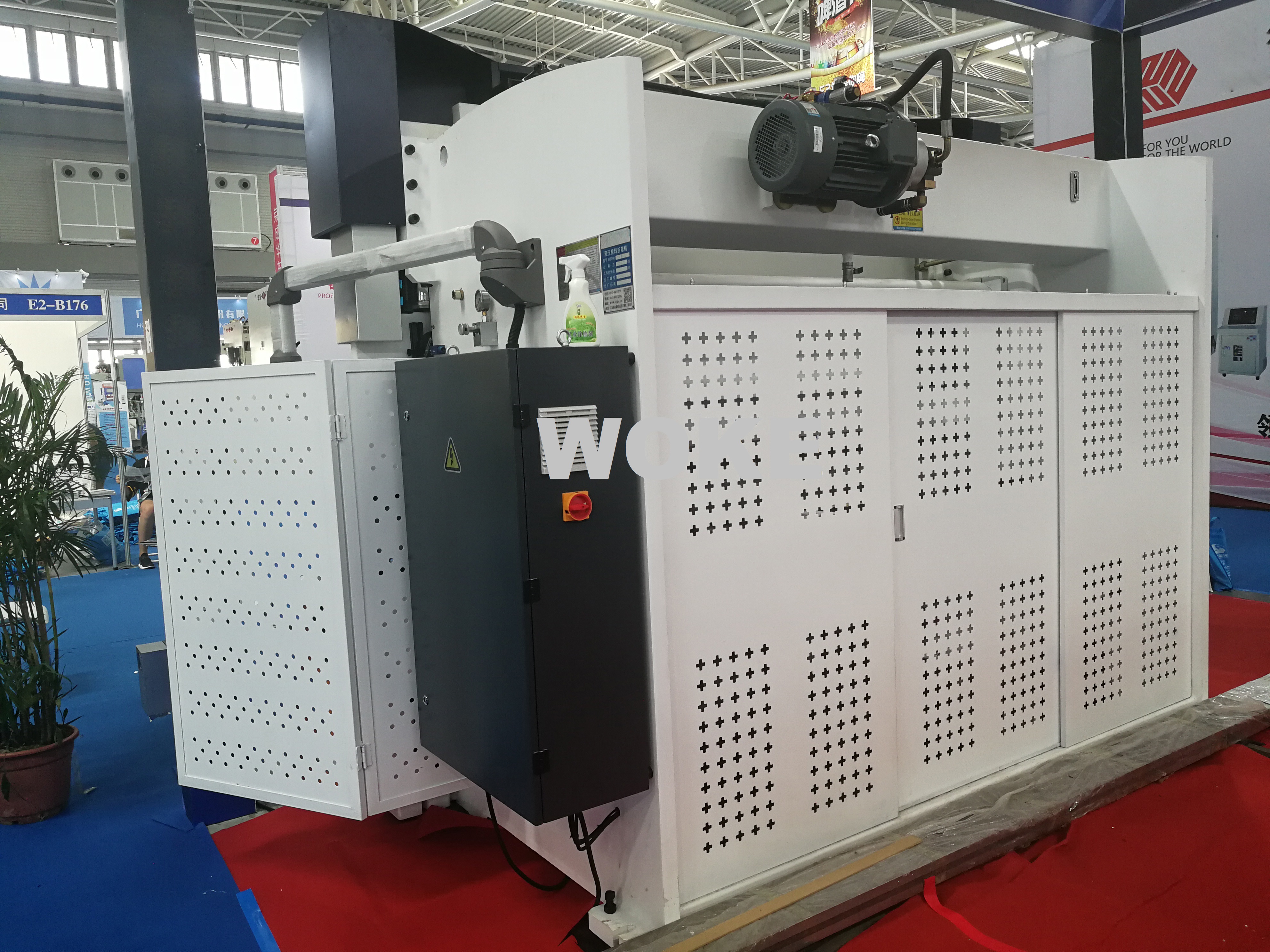

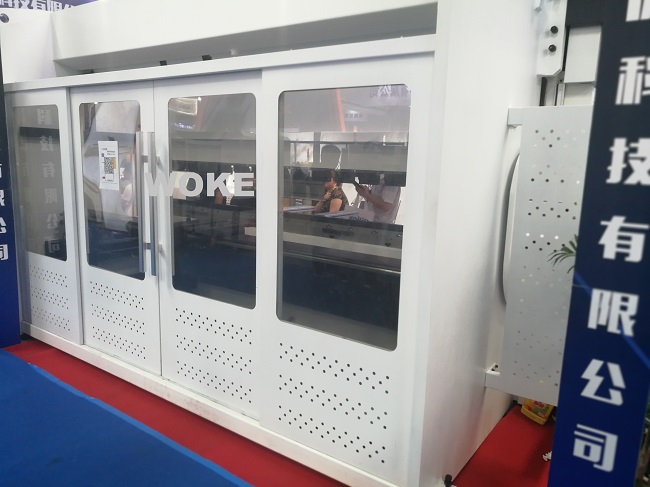

Press Brake View

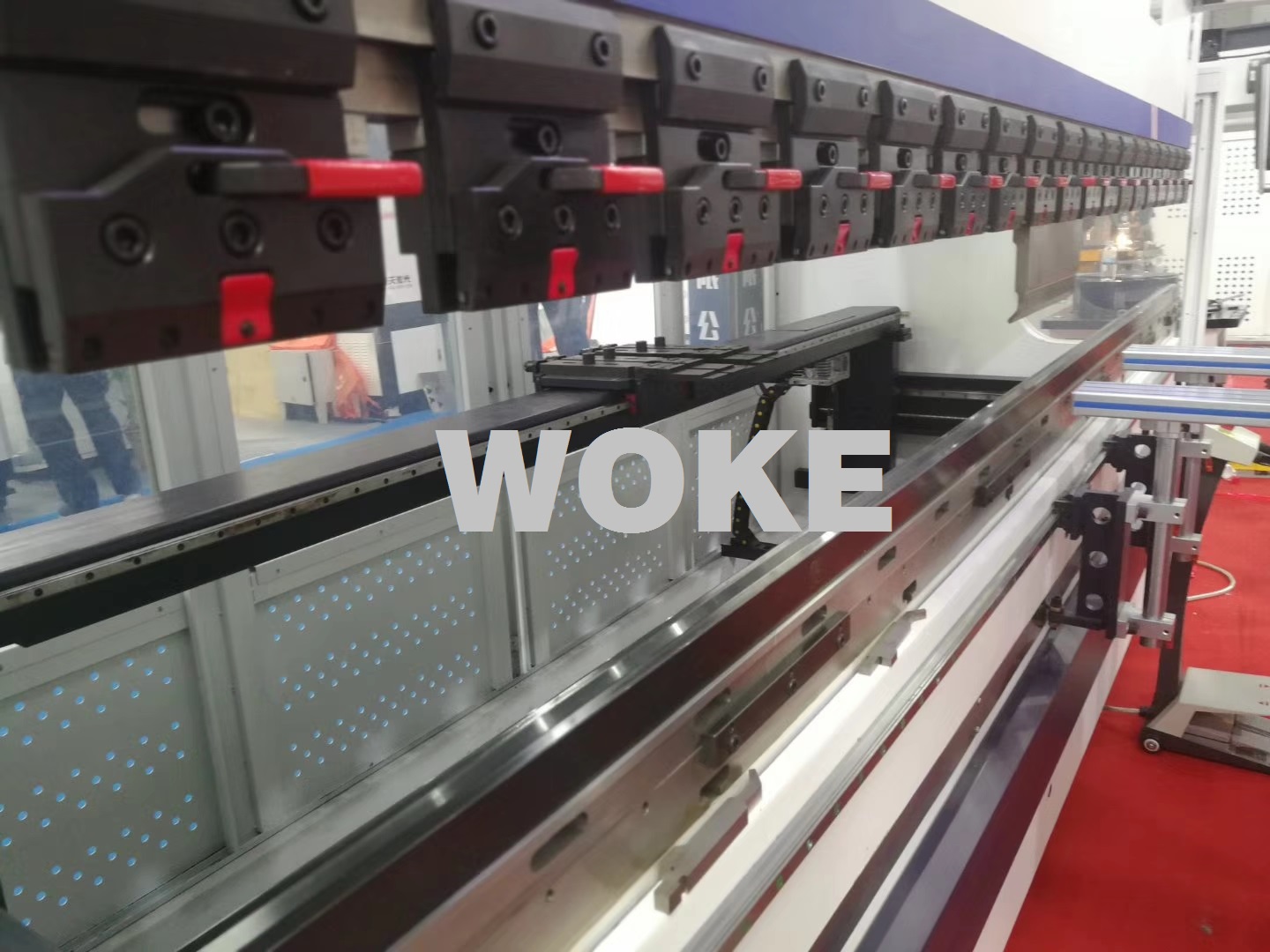

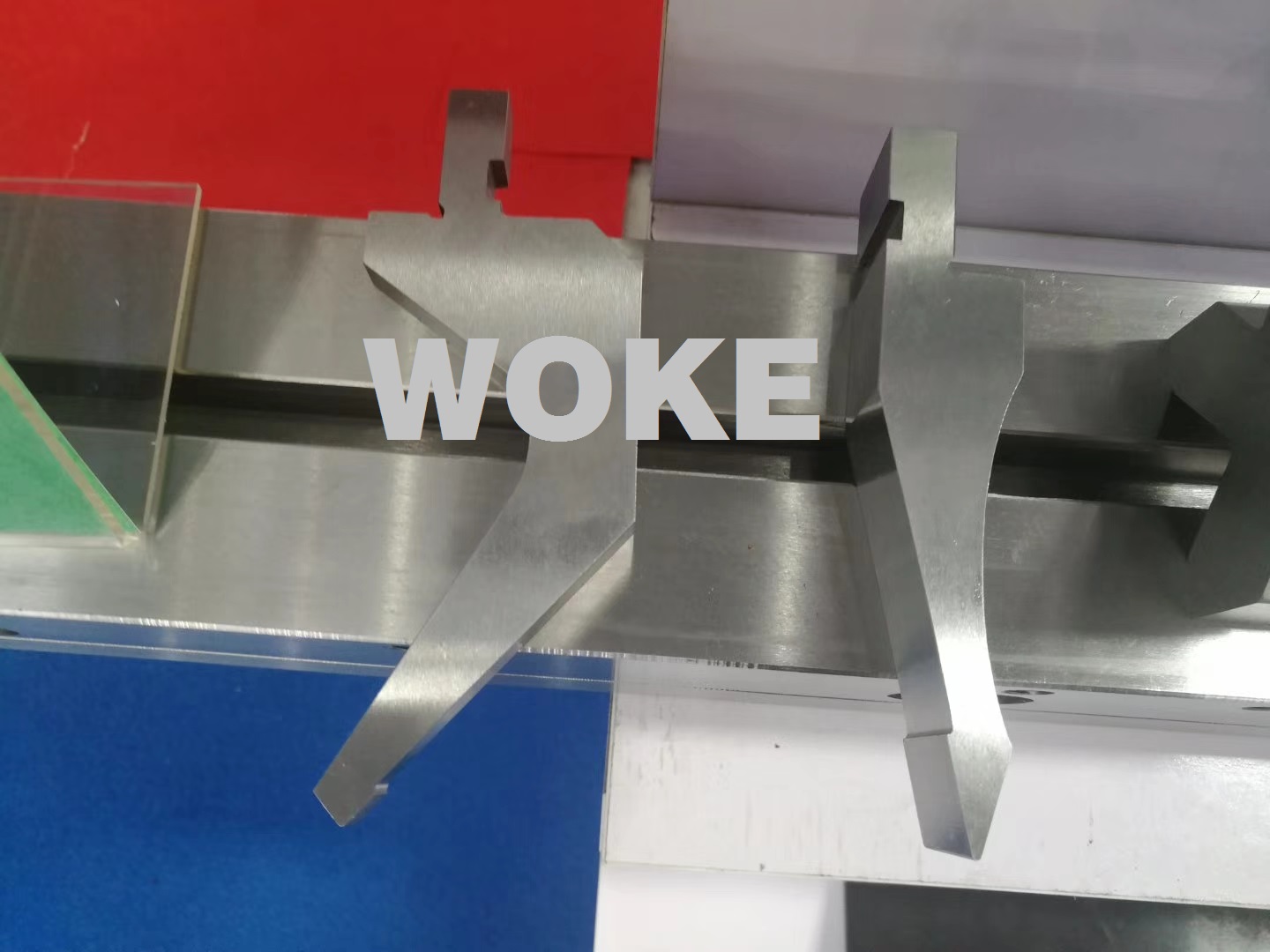

Bending Tools standard or customised

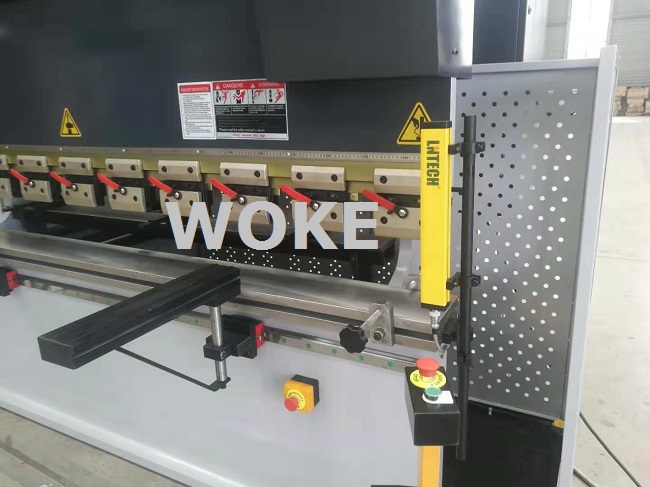

Safety light curtain, CE (option)

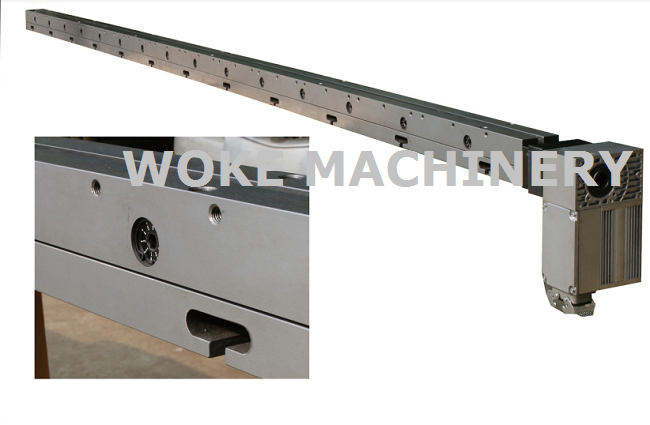

Worktable crowning system(option, hydraulic or motorized)

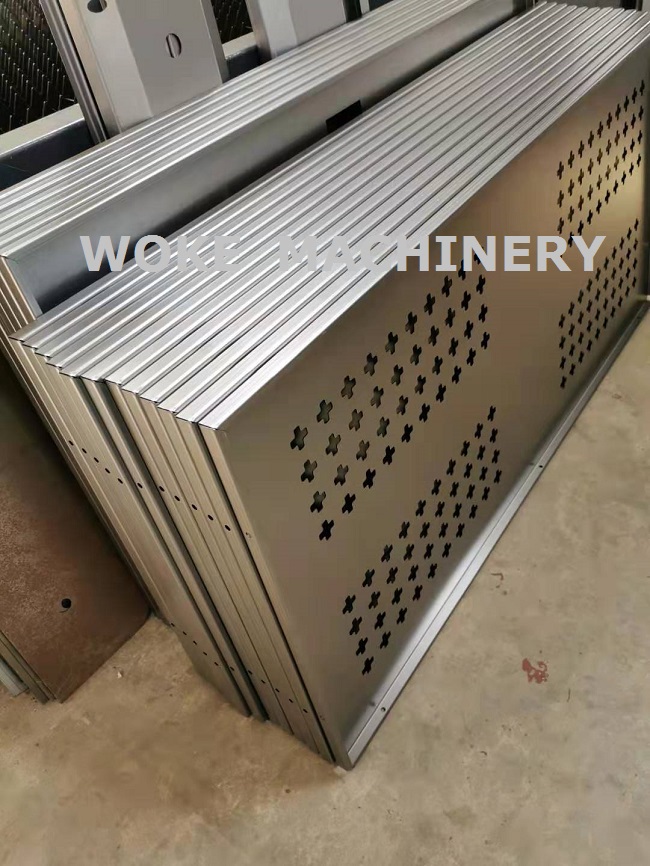

Bending samples by cnc bending machine

Please contact our sales manager Ms. Lily for inquiry, thank you!

WhatsApp or WeChat: 008613862701269

Email: ntwoke@yahoo.com

Skype: lilyxu126

PREVIOUS：NC CNC System For Hydraulic Press Brake NEXT：WE67K-200T-400T CNC Hydraulic Press Brake

Contact us

WE67K-40T-160T CNC Hydraulic Press Brake

Product introduction

Related products

WE67K-200T-400T CNC Hydraulic

CNC System For WE67K Hydraulic

WE67K-500T-1000T CNC Hydraulic

Model	Nominal pressure	Worktable length	Distance between column	Throat Depth	Stroke	Opening	Motor	Dimension
Model	Ton	mm	mm	mm	mm	mm	kw	mm
63T/2500	63	2500	2050	250	120	360	5.5	2750×1400×2180
63T/3200	63	3200	2600	250	120	360	5.5	3450×1400×2180
80T/2500	80	2500	2050	320	150	380	7.5	2750×1400×2350
80T/3200	80	3200	2600	320	150	380	7.5	3450×1400×2350
100T/2500	100	2500	2050	320	150	380	7.5	2750×1550×2480
100T/3200	100	3200	2600	320	150	380	7.5	3450×1550×2480
100T/4000	100	4000	3200	320	150	380	7.5	4250×1550×2600
125T/2500	125	2500	2050	320	150	380	7.5	2750×1550×2480
125T/3200	125	3200	2600	320	150	380	7.5	3450×1550×2480
125T/4000	125	4000	3200	320	150	380	7.5	4250×1550×2600
160T/2500	160	2500	2050	320	200	450	11	2750×1600×2650
160T/3200	160	3200	2600	320	200	450	11	3450×1600×2650
160T/4000	160	4000	3200	320	200	450	11	4250×1700×2650
