> QC11K NC, CNC Hydraulic Guillotine Shearing Machine液压闸式剪板机
QC11K-16X2500/3200/4000/6000 Hydraulic guillotine shearing machine cutting machine
- shearing machine
- Guillotine shearing machine
- Hydraulic guillotine shearing machine
- Hydraulic guillotine cutting machine
- Product description: High positioning Long service life Competitive price cnc shearing machine
Product introduction
QC11Y QC11K NC ,CNC Hydraulic Guillotine Shearing Machine / Cutting Machine
Shearing Machine Performance
1. The frame and blade’s holder are both welded construction, vibration to eliminate stress with good precision;
2. Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder. With easy operation,
reliable performance and nice appearance.
3. The top blades’s holder adopts inner slanting construction to ease unloading working piece to promote the quality of
workpiece. The stroke of top blade could be adjusted stepless.
4. Rectangular blade has four edges to use to elong service life. The cutting angle could be adjusted to relief the
deflection of working piece.
5. The forward and backward movement of back gauge is controlled by ESTUN or DELEM CNC control system.
6. All major hydraulic and electrical elements are famous international brand.
7. Pneumatic back support is optional.
Shearing Machine Parameters
Model
Max.
Shearing Thickness
Max.
Shearing Width
Distance Between Uprights
Working Table Height
Strokes
Back Gauge Stroke
Shearing Angle
Throat
Depth
Main Power
DIMENSION
mm
mm
mm
mm
Min-1
mm
°
mm
kw
mm(L×W×H)
16×2500
16
2500
2730
835
10
20-750
0.5-2.5°
150
22
3200×2100×2350
16×3200
16
3200
3530
920
8
20-750
0.5-2.5°
150
22
4000×2150×2500
16×4000
16
4000
4330
950
6
20-750
0.5-2.5°
150
22
4850×2200×2550
16×6000
16
6000
6340
1170
4
20-1000
0.5-2.5°
150
37
6900×2500×3000

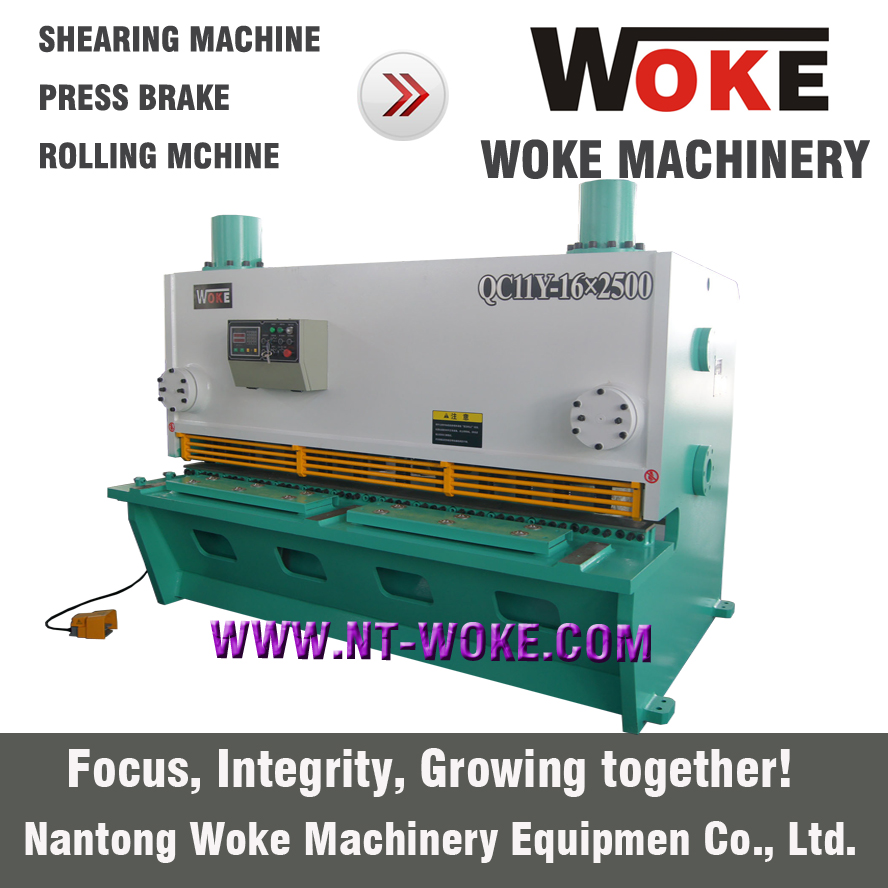

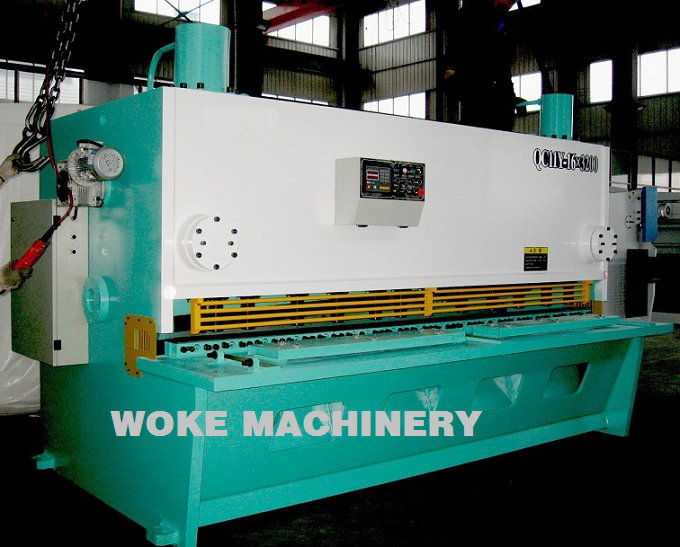

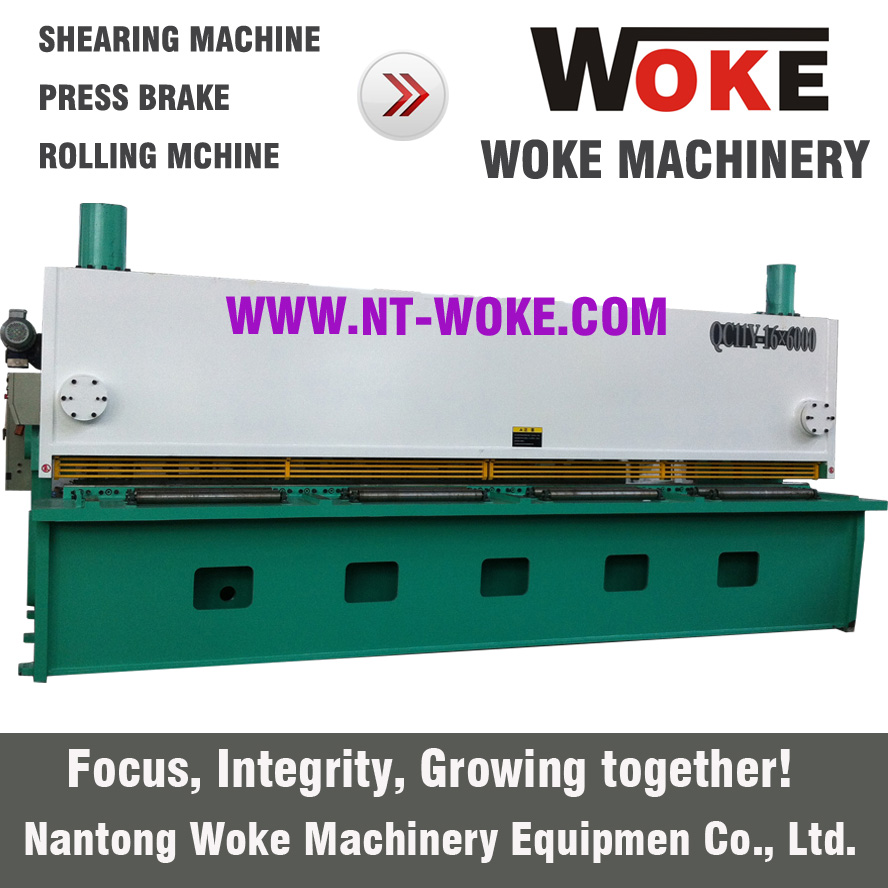

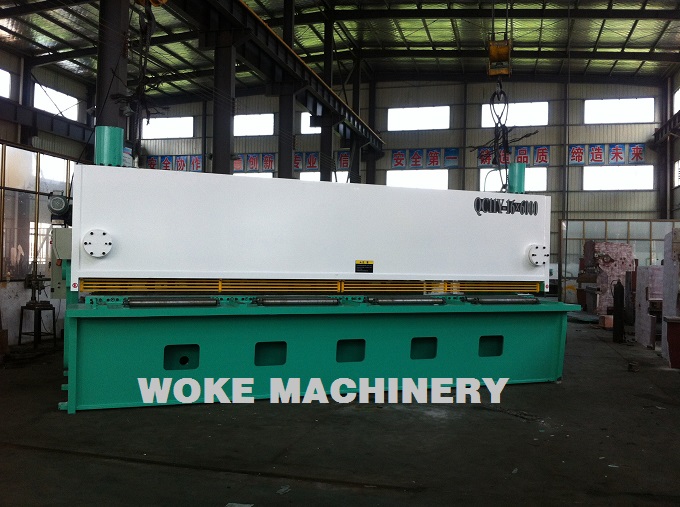

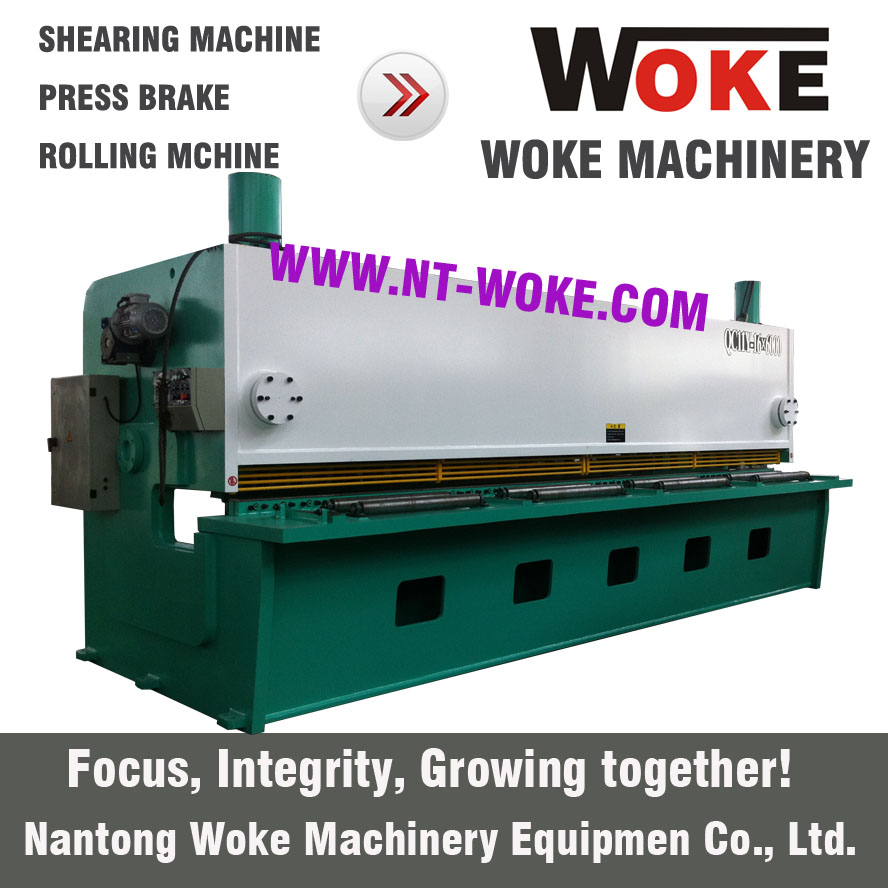

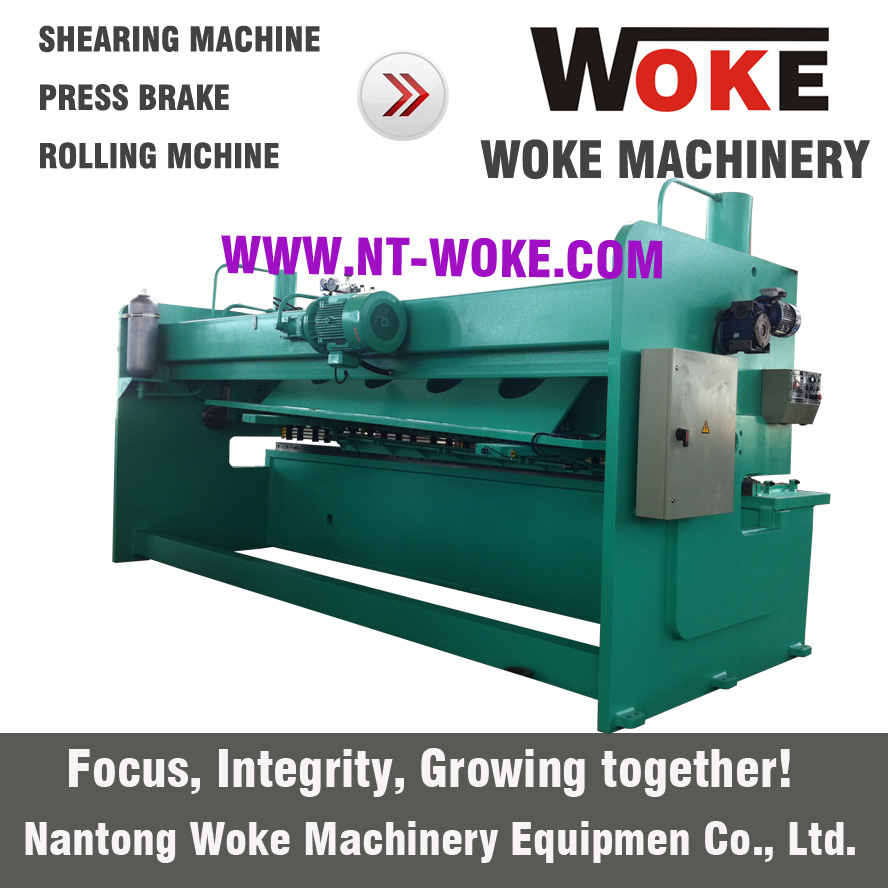

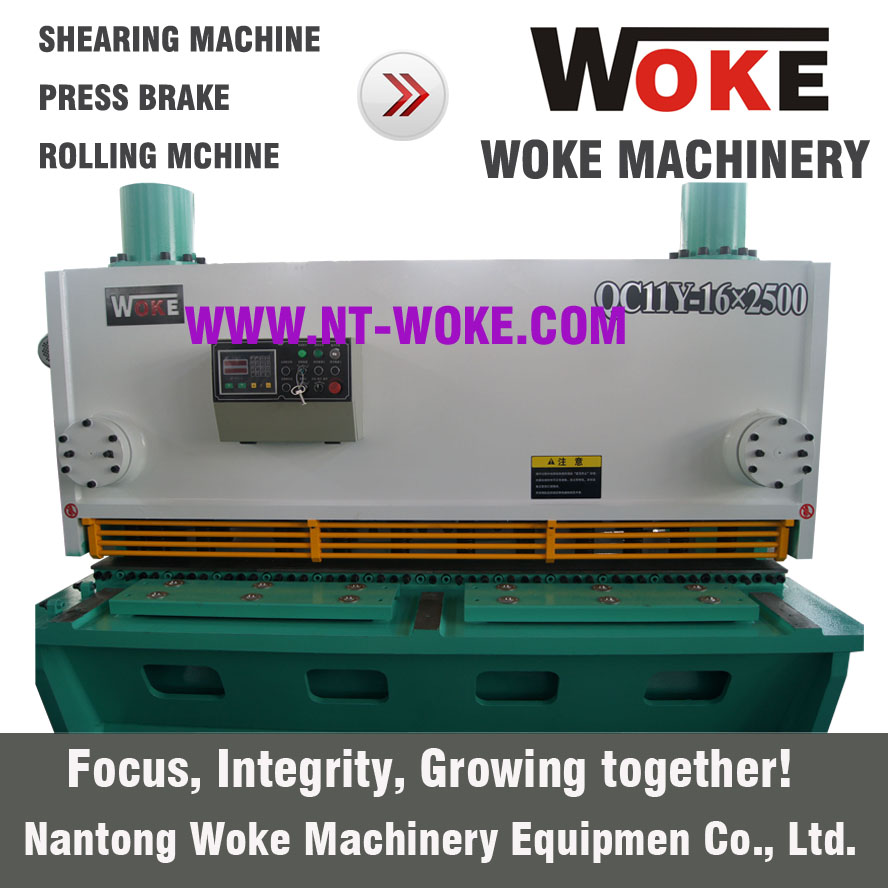

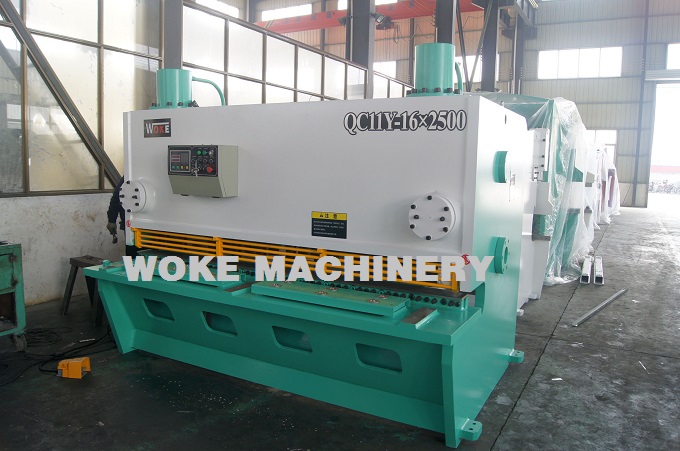

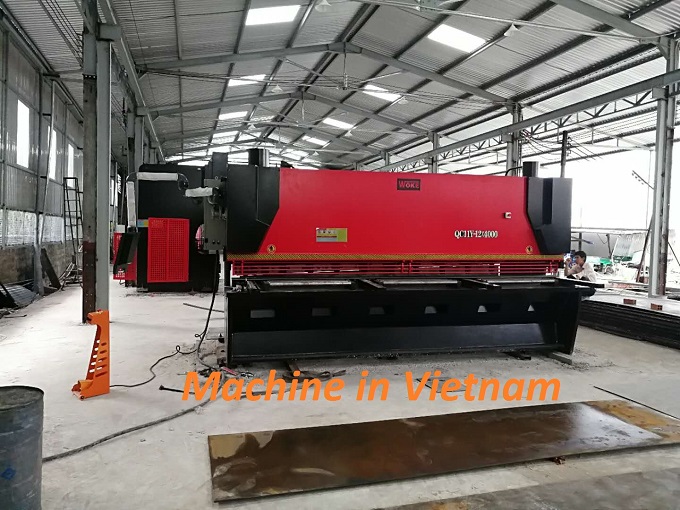

Shearing Machine View
