QC11K-12X2500/3200/4000/6000 Hydraulic guillotine shearing machine cutting machine
- shearing machine
- Guillotine shearing machine
- Hydraulic guillotine shearing machine
- Hydraulic guillotine cutting machine
- Product description: High positioning Long service life Competitive price cnc shearing machine
Product introduction
QC11Y QC11K NC ,CNC Hydraulic Guillotine Shearing Machine / Cutting Machine
Shearing Machine Performance
1. The frame and blade’s holder are both welded construction, vibration to eliminate stress with good precision;
2. Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder. With easy operation,
reliable performance and nice appearance.
3. The top blades’s holder adopts inner slanting construction to ease unloading working piece to promote the quality of
workpiece. The stroke of top blade could be adjusted stepless.
4. Rectangular blade has four edges to use to elong service life. The cutting angle could be adjusted to relief the
deflection of working piece.
5. The forward and backward movement of back gauge is controlled by ESTUN or DELEM CNC control system.

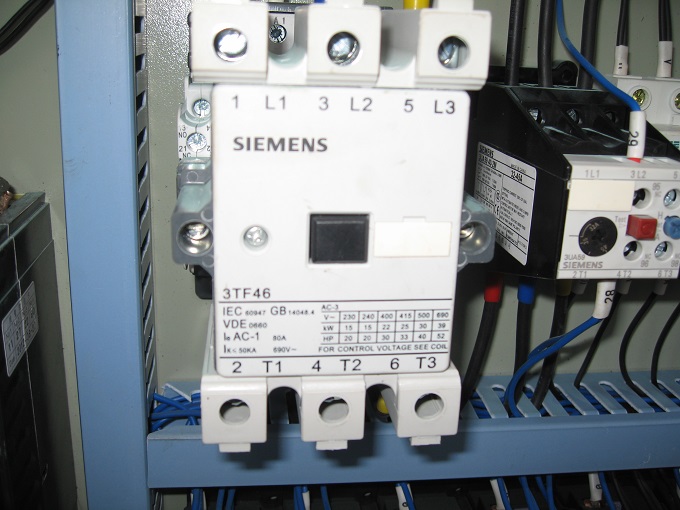

6. All major hydraulic and electrical elements are famous international brand.
7. Pneumatic back support is optional.
Shearing Machine Parameters
Model
Max.
Shearing Thickness
Max.
Shearing Width
Distance Between Uprights
Working Table Height
Strokes
Back Gauge Stroke
Shearing Angle
Throat
Depth
Main Power
DIMENSION
mm
mm
mm
mm
Min-1
mm
°
mm
kw
mm(L×W×H)
12×2500
12
2500
2730
830
12
20-750
0.5-2°
150
15
3200×2000×2200
12×3200
12
3200
3430
810
8
20-750
0.5-2°
150
22
3900×2050×2250
12×4000
12
4000
4230
910
6
20-750
0.5-2°
150
22
4700×2100×2400
12×6000
12
4000
6370
1080
4
20-750
0.5-2°
150
22
6900×2400×2800

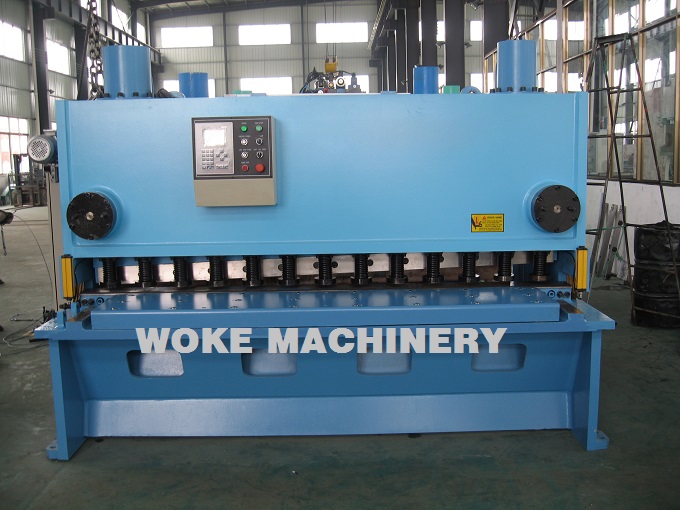

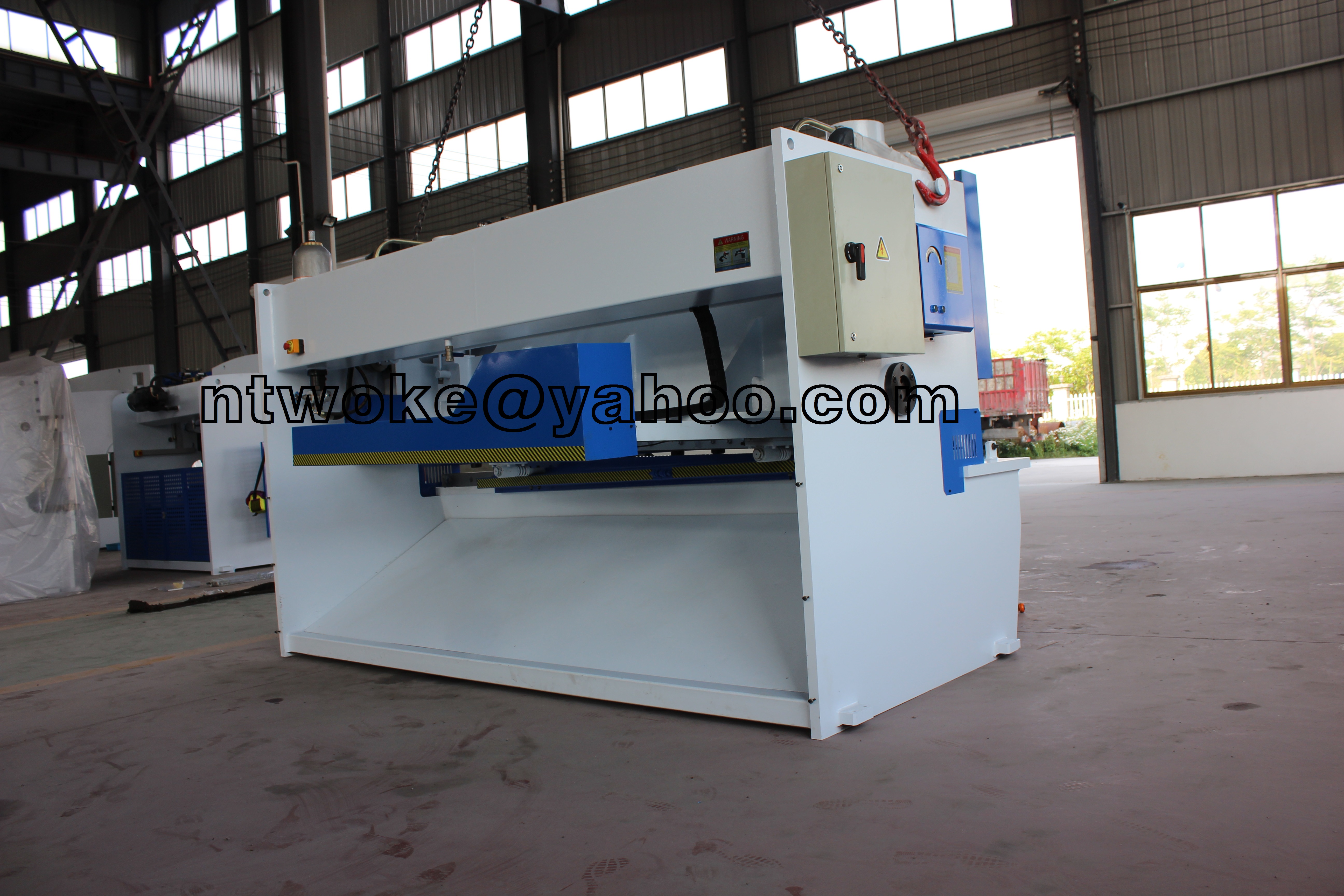

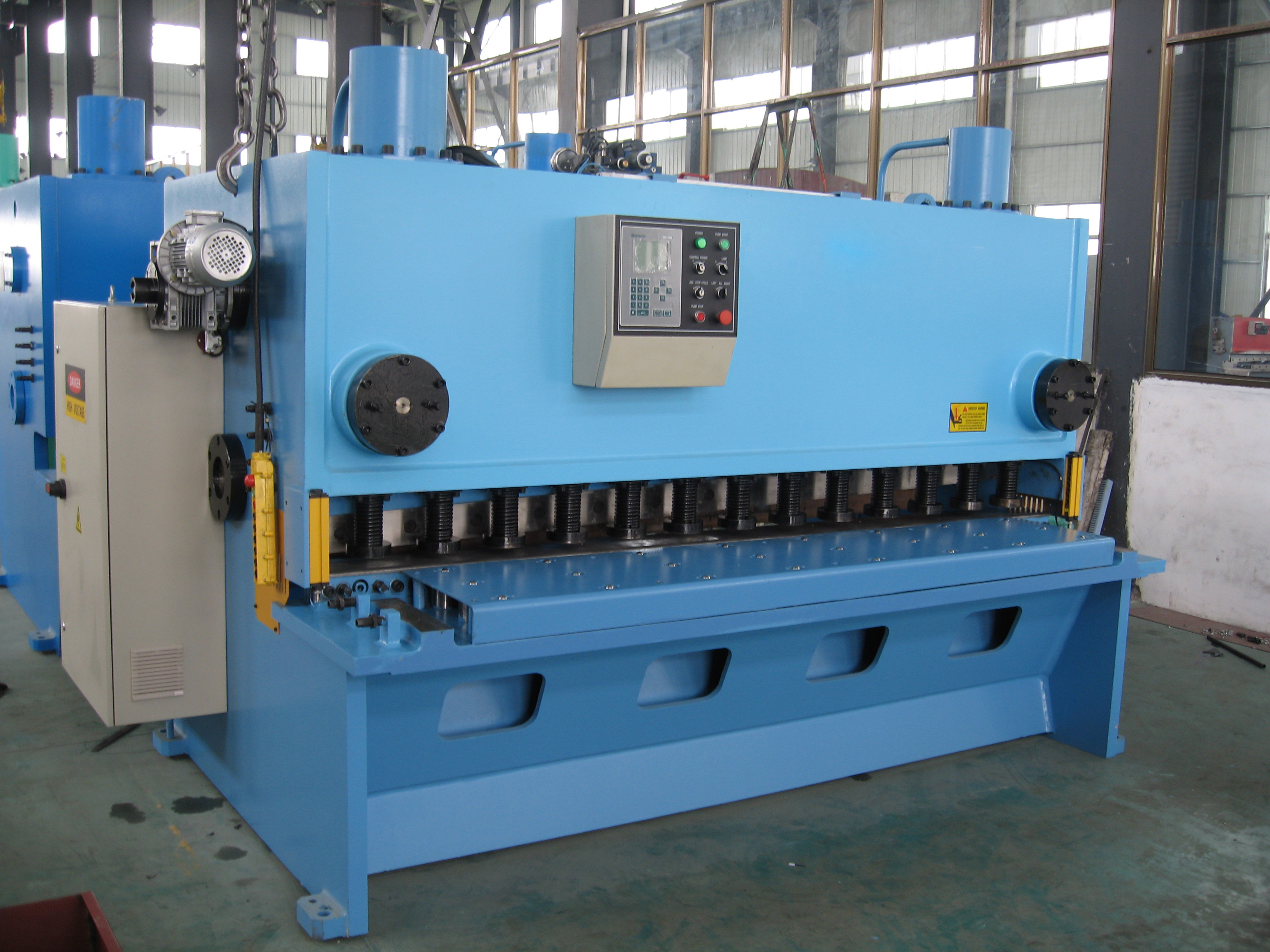

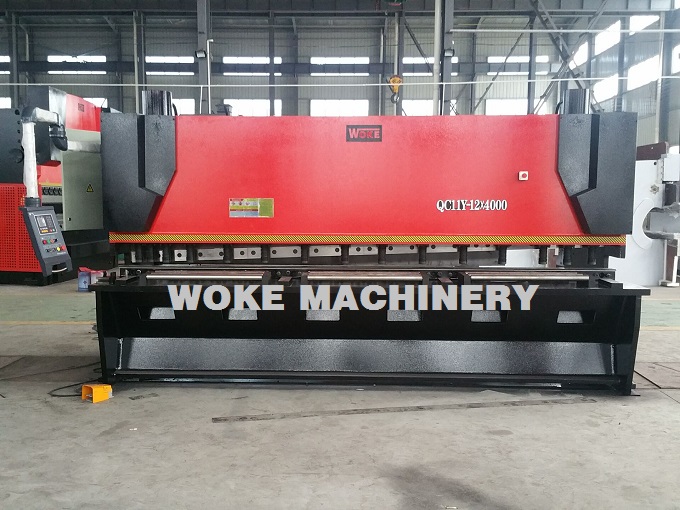

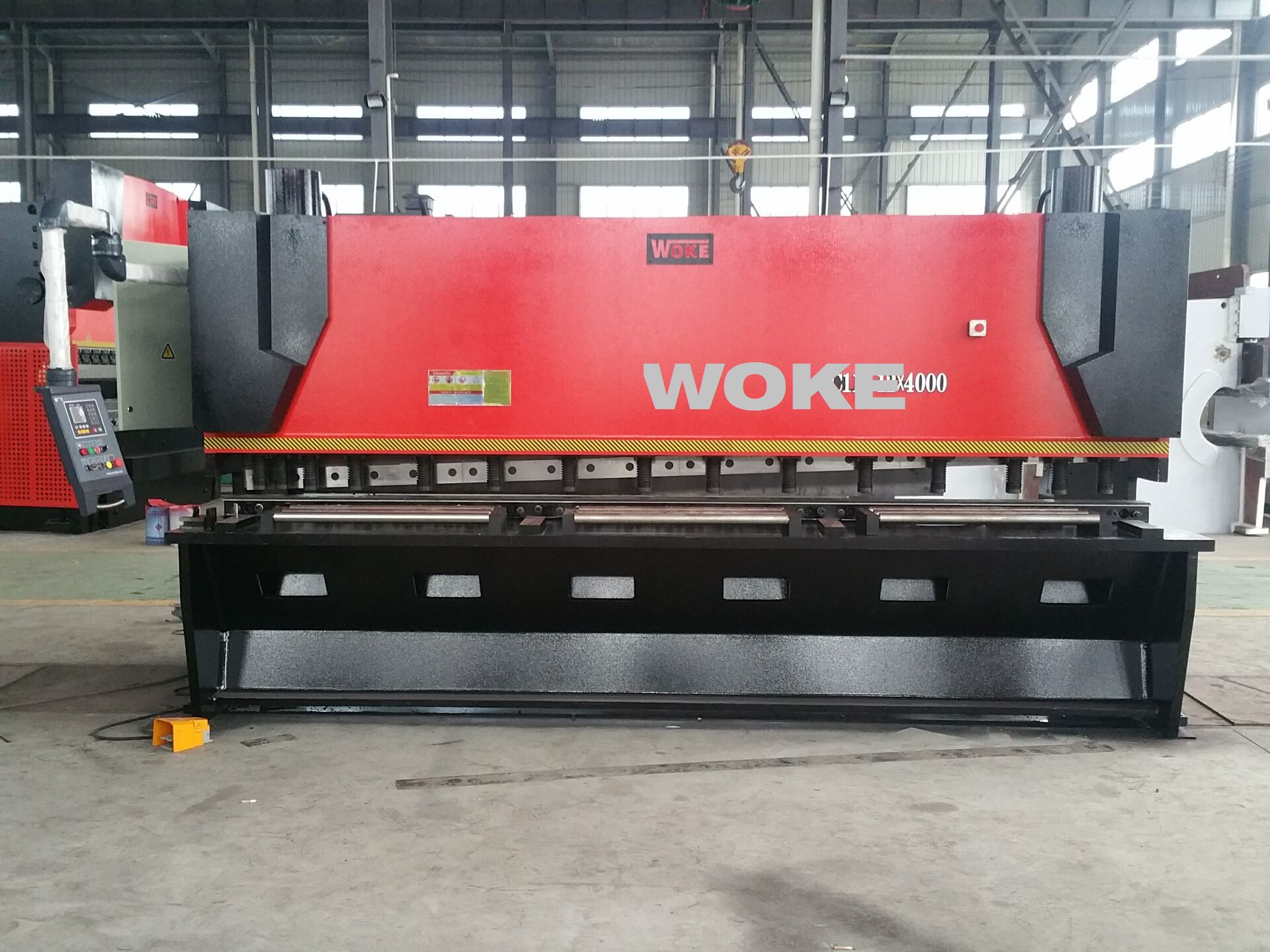

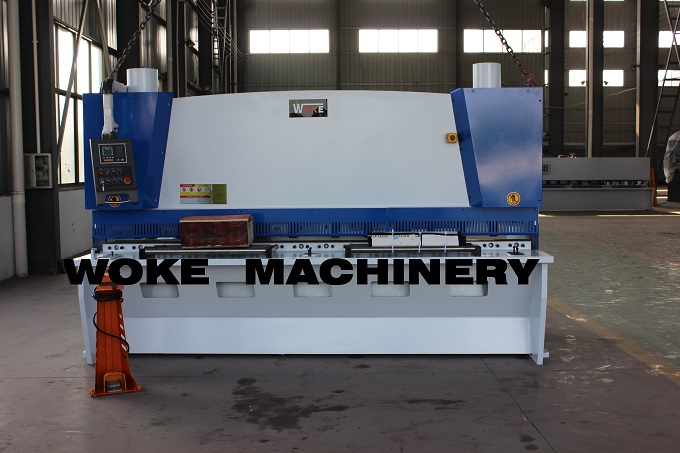

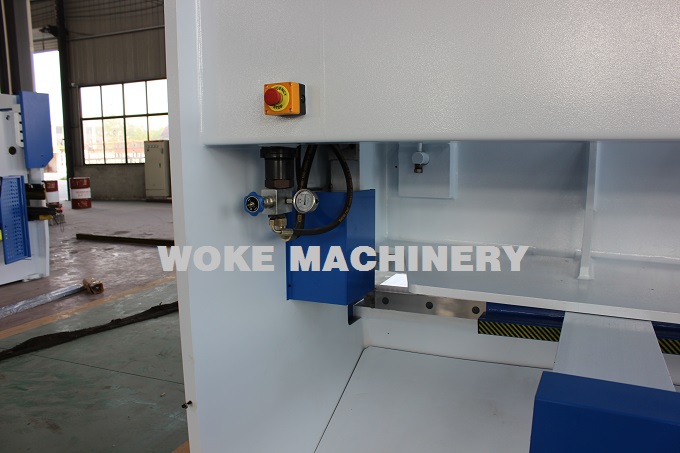

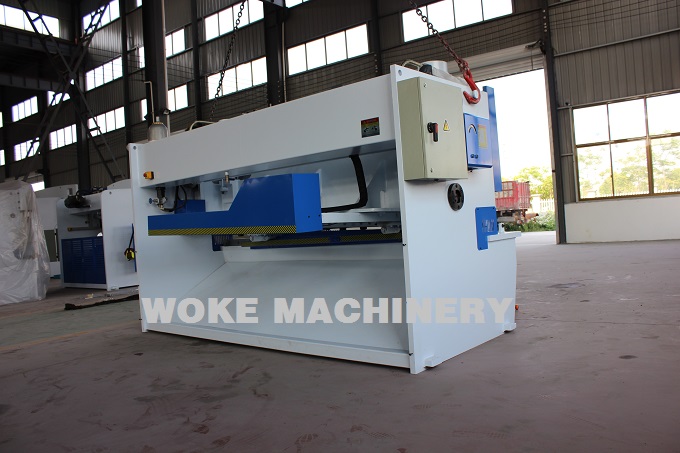

Shearing Machine View
Estun E21s NC System, Estun E210 CNC system, Delem cnc system
