> QC12K NC, CNC Hydraulic Swing Beam Shearing machine 液压摆式剪板机

QC12K-25/30X2500/3200/4000 NC CNC Hydraulic Swing Beam Shearing Machine Cutting Machine

shearing machine
cnc shearing machine
Hydraulic Swing Beam Shearing machine
cutting machine
Product description: shearing machine cnc shearing machine
Inquiry

Product introduction

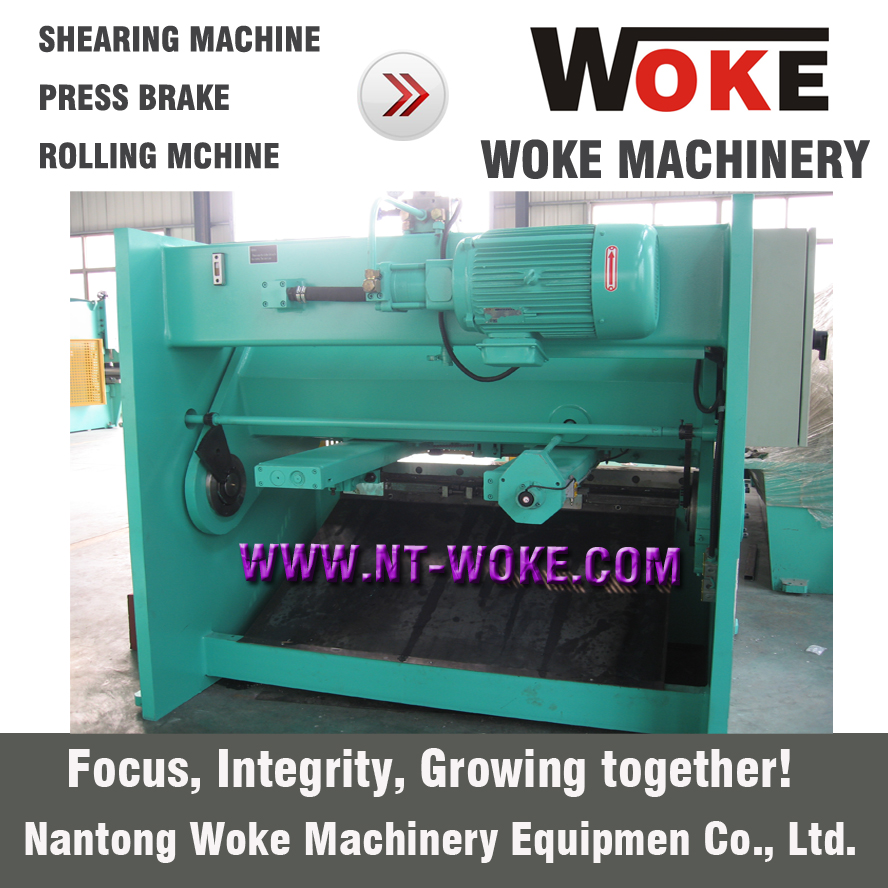

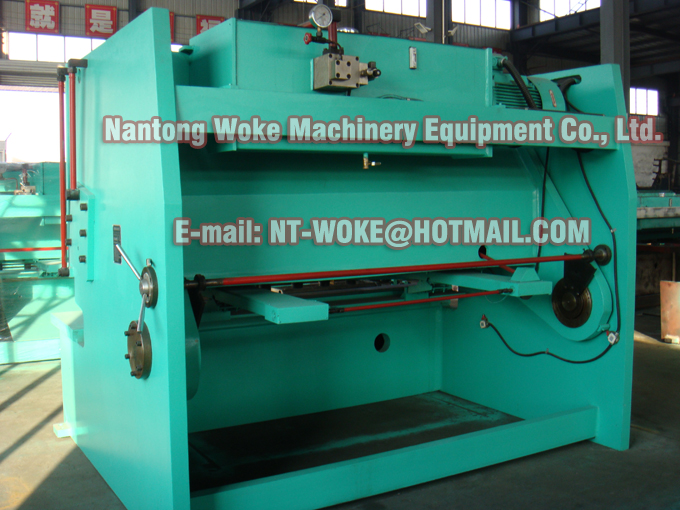

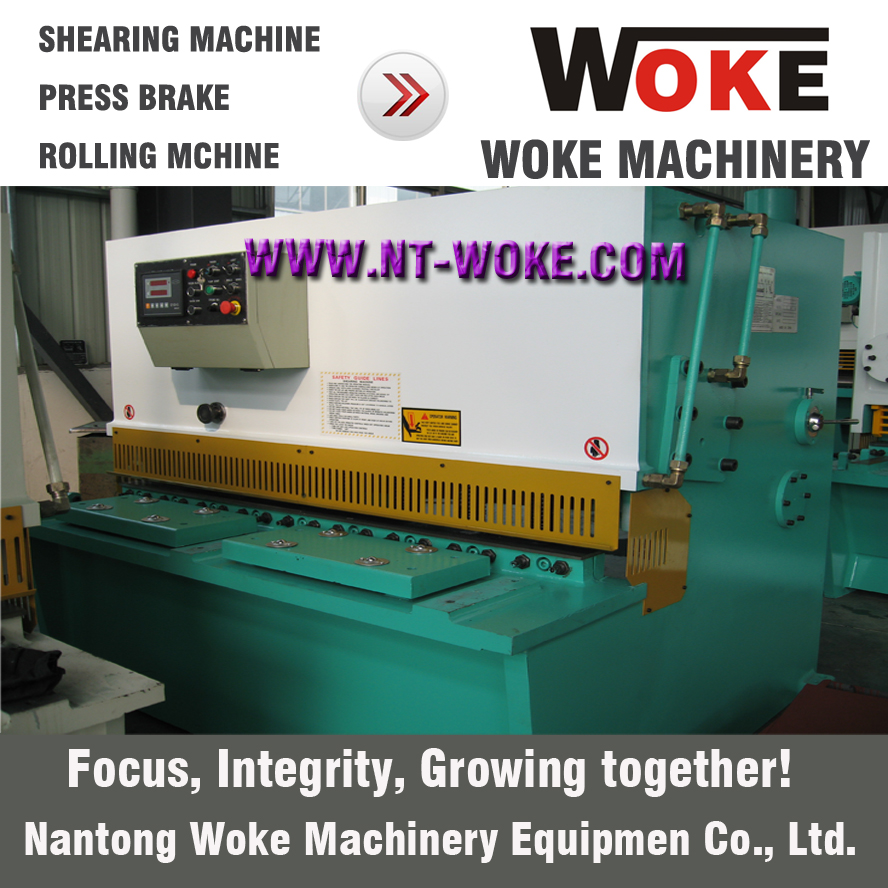

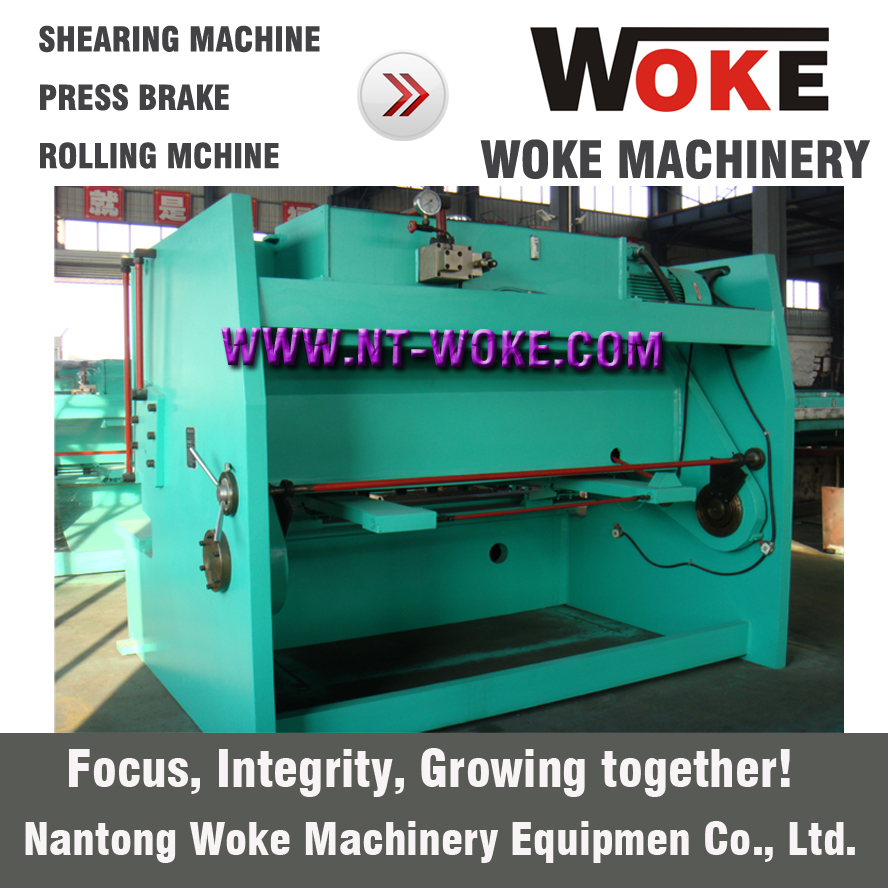

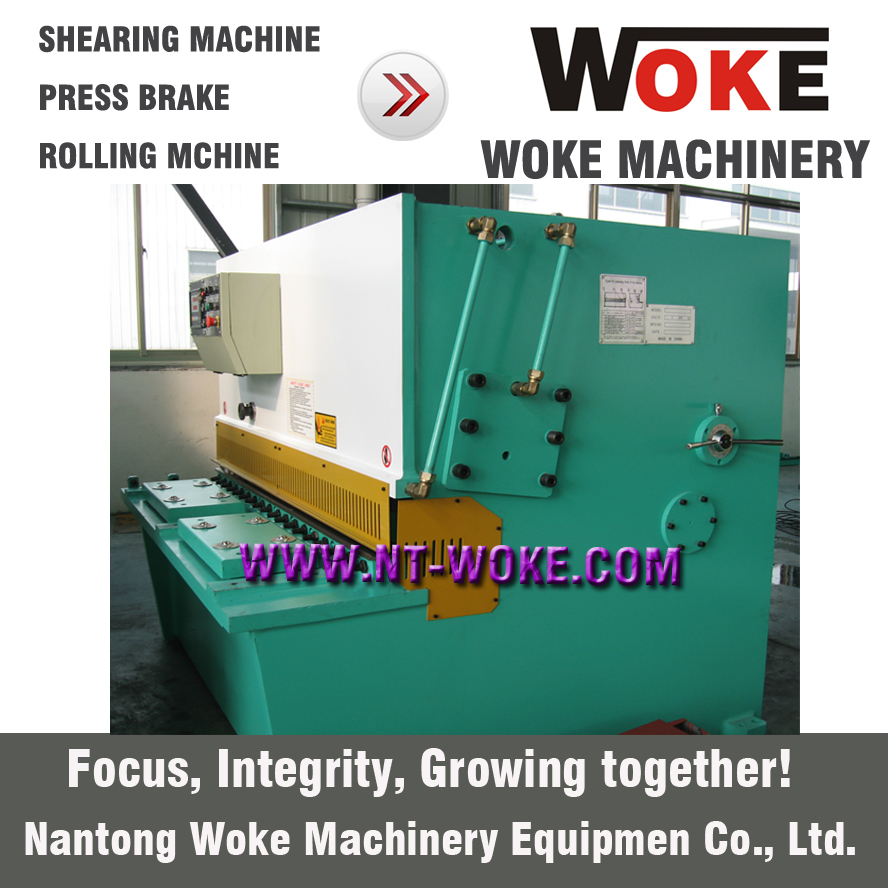

QC12Y QC12K NC ,CNC Hydraulic Swing Beam Shearing Machine Cutting Machine

Shearing Machine Performance

1. The frame and blade’s holder are both welded construction, vibration to eliminate stress with good precision;

2. Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder. With easy operation, reliable performance and nice appearance.

3. After welding, the frame is processed by CNC pentahedron at one time to ensure the rigidity and accuracy.

4. Manual adjustable blade clearance. There is indicator for adjusting the blade clearance, easily operation.

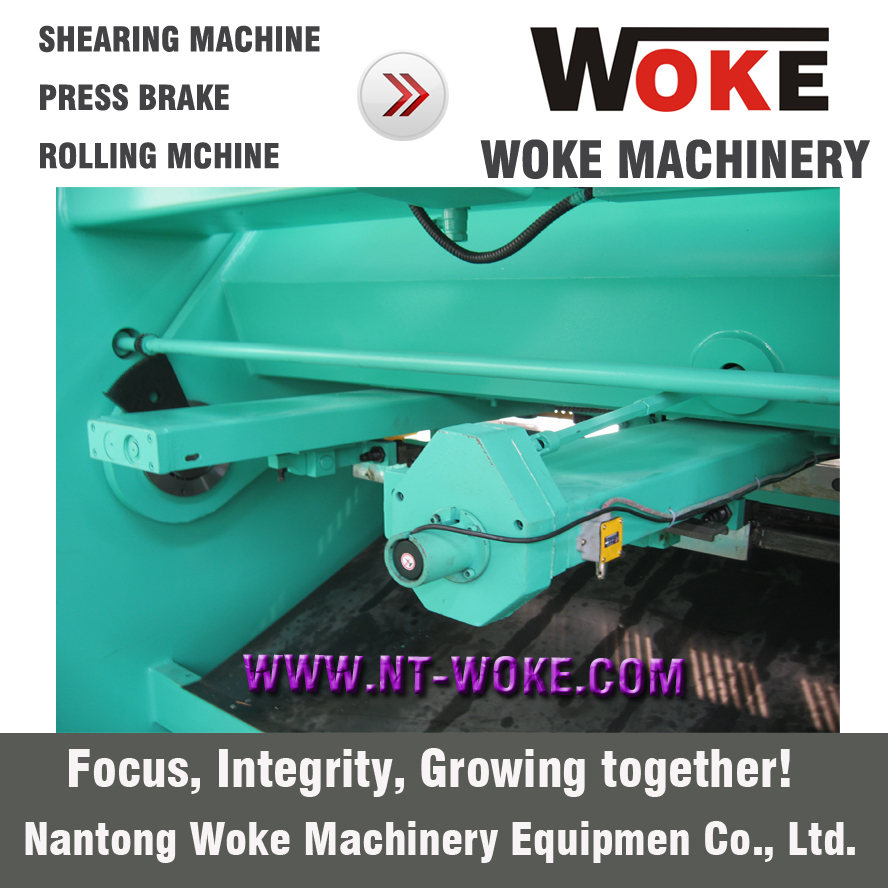

5. The forward and backward movement of back gauge is controlled by ESTUN or DELEM CNC control system.

6. All major hydraulic and electrical elements are famous international brand.

Shearing Machine Parameters

Model	Max. Shearing Thickness	Max. Shearing Width	Distance Between Uprights	Working Table Height	Strokes	Back Gauge Stroke	Shearing Angle	Throat Depth	Main Power	Dimensions
Model	mm	mm	mm	mm	Min^-1	mm	°	mm	kw	mm(L×W×H)
25×2500	25	2500	2805	900	5	20-750	3°7'	150	37	3450×2500×2350
25×3200	25	3200	3505	900	5	20-1000	3°7'	150	37	4160×2600×2500

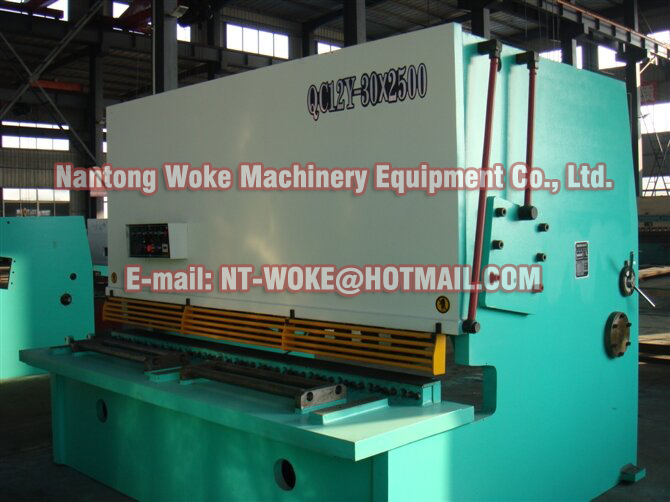

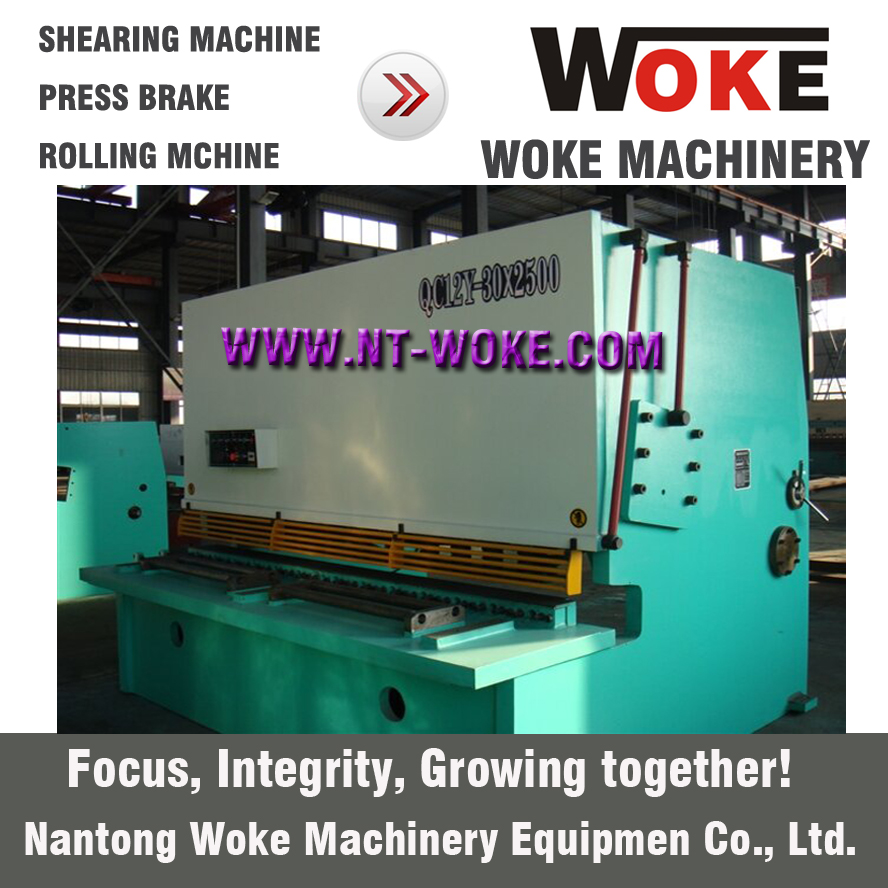

30×2500	30	2500	2825	900	4	20-1000	3°12'	200	45	3500×2650×2500
30×3200	30	3200	3450	1000	4	20-1000	3°12'	200	45	4350×3050×2800
