> QF28Y Hydraulic Nothing Machine液压切角机
QF28Y Hydraulic Angle Notching Machine
- angle notching machine
- hydraulic adjustable angle cutter
- Hydraulic Notching Machine
- Variable corner notching machine
- Product description: Hydraulic Notching Machine hydraulic adjustable angle cutter Variable corner notching machine
Product introduction
QF28Y Hydraulic Notching Machine
Hydraulic Notching Machine Performance
1. Strip cutting device with scale with fast adjustment for Max. strip size 200x200mm.
2. 2 selflocking stops with moveable and exchangeable stop bar 350mm in length.
3. 1 set upper and 1 set bottom of blades for stainless steel, reverse type.
4. Triplex scale on the working table for fast adjustment of the stops.
5. Plexiglass guard for easy vision.
6. High quality components.
7.Fixed blades clearance for any thickness and material.
8. Moveable and set up switch.
9. Single and set up stroke.
10. Slug box.
11. Adjustable stroke.
12. 2 sheet holders
Shearing Machine Parameters
|
Model |
QX28Y-4X200 |
QF28Y-6X200 |
QF28Y-4X200 |
|
Shear capacity |
4(A3), 2(SS) |
6(A3), 3(SS) |
4(A3), 2(SS) |
|
Cutting length(mm) |
200 |
200 |
200 |
|
Cutting angle range(º) |
45-135 |
90 |
90 |
|
Power(kw) |
3 |
4 |
3 |
|
Dimension(mm) |
1500x950x1400 |
1000x1000x1200 |
1000x1000x1200 |
|
Net (kg) |
1450 |
620 |
520 |

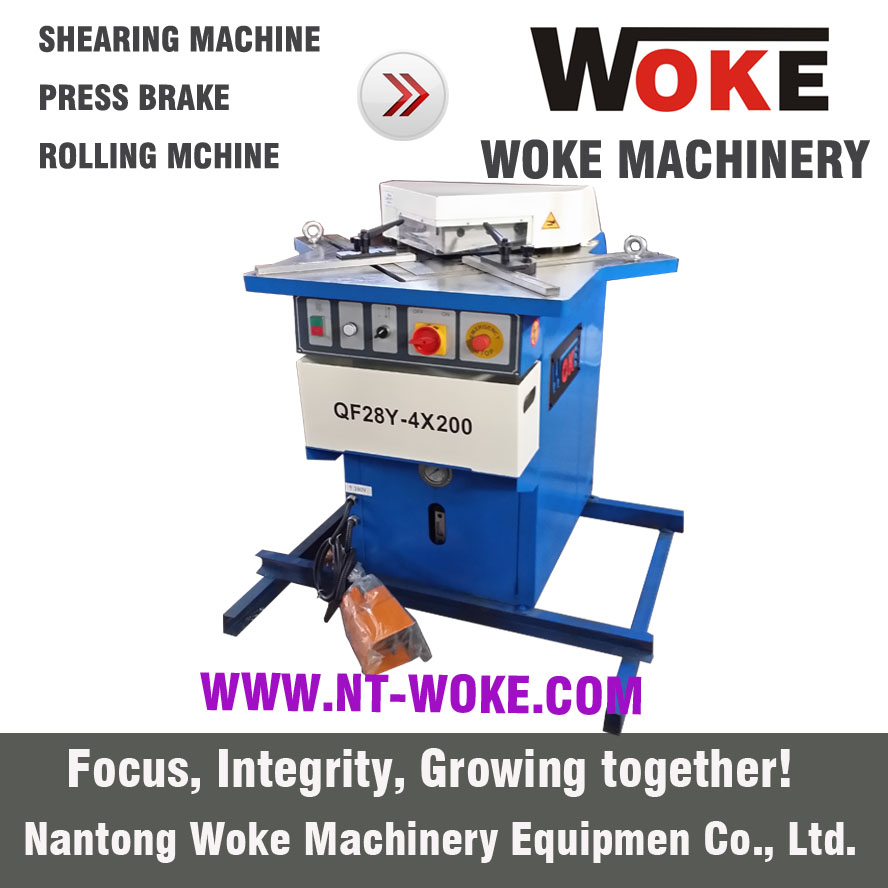

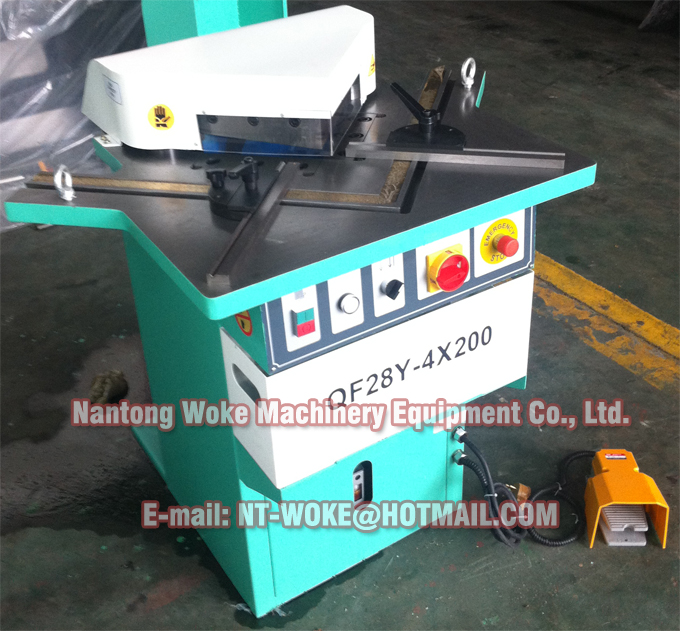

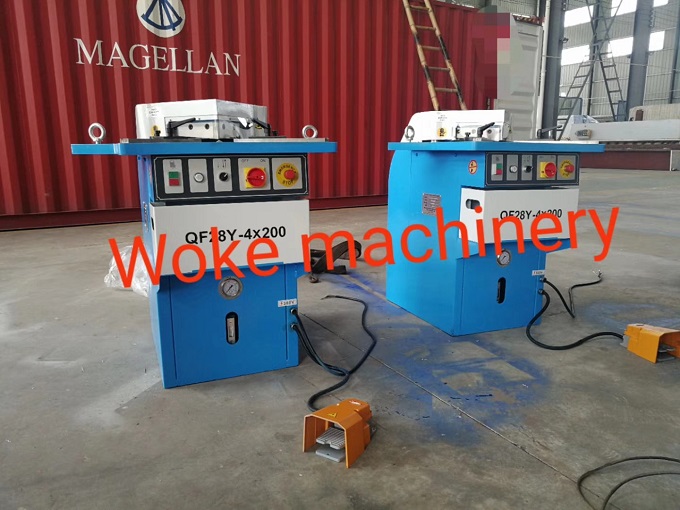

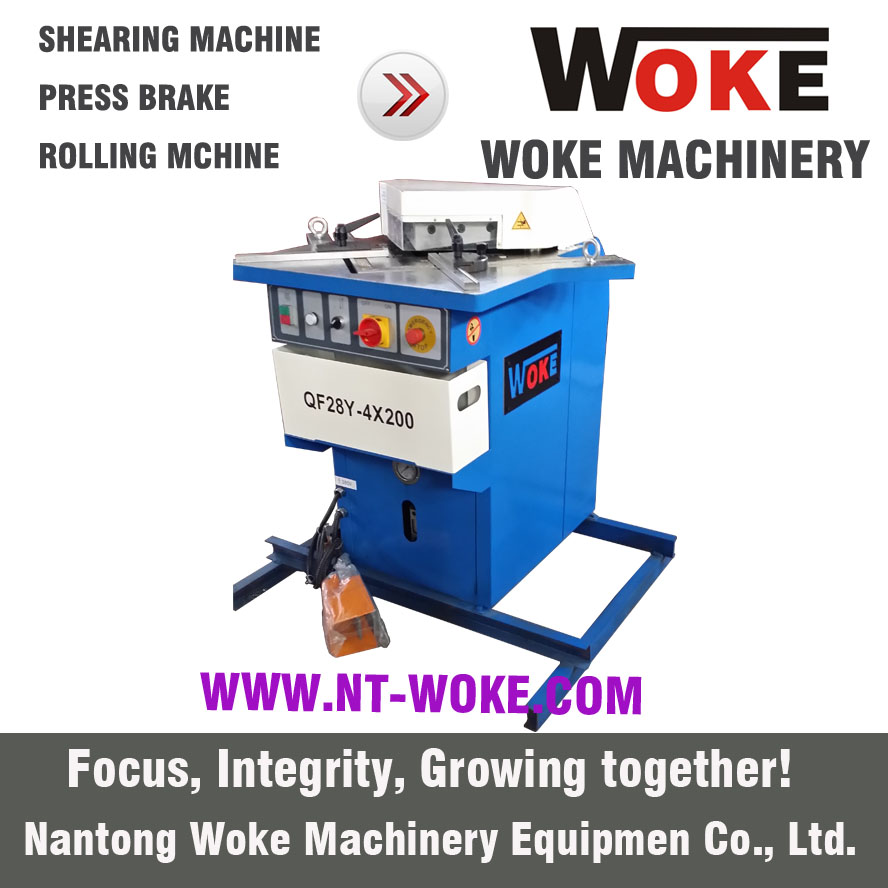

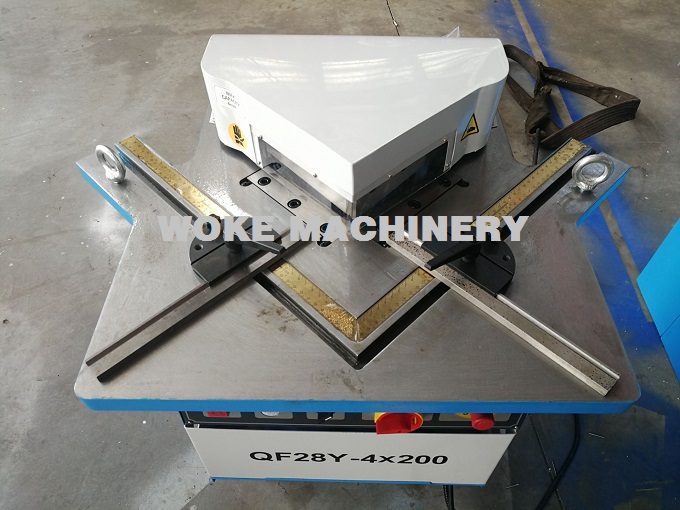

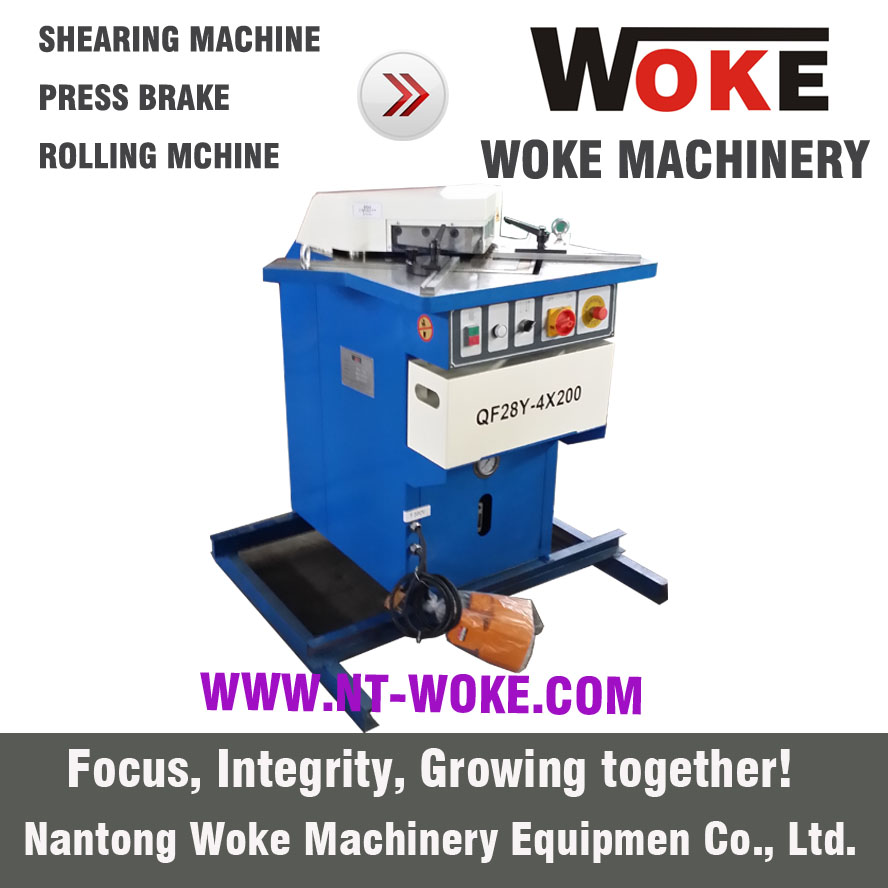

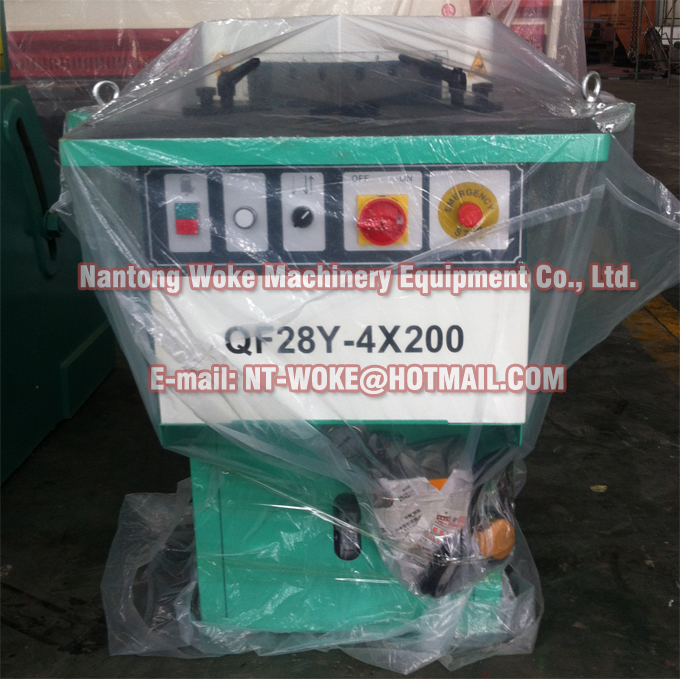

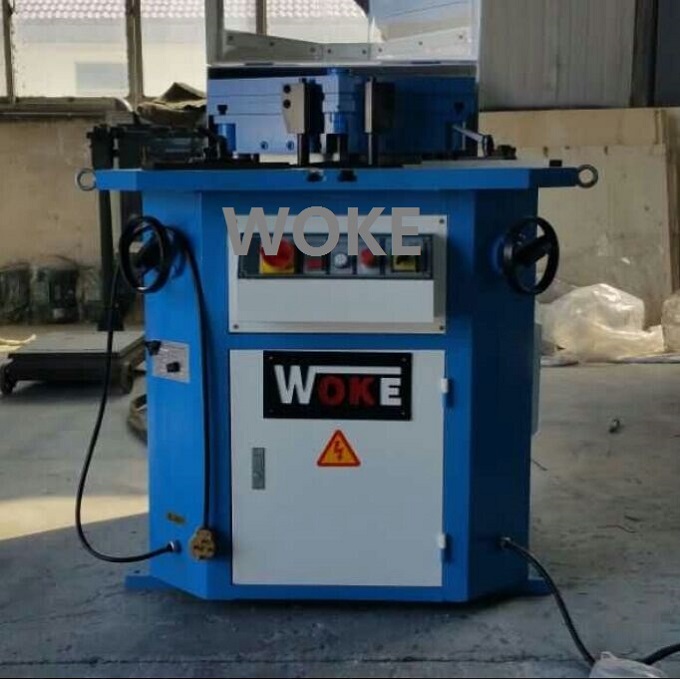

Shearing Machine View
