> QH11D Precision Mechanical Shear精密剪板机
QH11D Precision Mechanical Shearing machine
- Shearing machine
- Semiautomatic
- Mechanical type
- High precision
- Product description: Small mechanical shearing machine For metal and plastic plate
Product introduction
QH11D Precision Mechanical Shearing Machine
Shearing Machine Performance
A brake motor driving through a shaft-mounted speed reduction unit and controlled by a selector switch for single or continuous strokes, provides quiet instantaneous engagement. Different from the traditional driving method of mechanical shearer, it is one of the most advanced miniature mechanical shearers, and enjoys good reputation both inChinaand abroad. The low cutting angle and inclined shear direction reduces bowing and twist to a minimum. Blade clearance is easily set by a manually operated quick set device, it is an ideal true cut machining equipment of sheet metal and non-metallic sheet metal.
Shearing Machine Parameters
|
Model |
Max. Shearing Thickness |
Max. Shearing Width |
Working Table Height |
Strokes |
Back Gauge Stroke |
Shearing Angle |
Main Power |
Dimensions |
|
mm |
mm |
mm |
Min-1 |
mm |
° |
kw |
mm(L×W×H) |
|
|
2.5×1250 |
2.5 |
1250 |
800 |
47 |
0-650 |
1°30' |
5.5 |
1818×800×1180 |
|
2.5×1300 |
2.5 |
1300 |
800 |
47 |
0-650 |
1°30' |
5.5 |
1868×800×1180 |
|
2.5×1500 |
2.5 |
1500 |
800 |
47 |
0-650 |
1°30' |
5.5 |
2068×800×1180 |
|
2.5×1600 |
2.5 |
1600 |
800 |
47 |
0-650 |
1°30' |
5.5 |
2218×800×1180 |
|
2.5×1800 |
2.5 |
1800 |
800 |
47 |
0-650 |
1°30' |
5.5 |
2418×800×1180 |
|
2.5×2000 |
2.5 |
2000 |
800 |
47 |
0-650 |
1°30' |
7.5 |
2582×800×1180 |
|
2.5×2500 |
2.5 |
2500 |
800 |
47 |
0-650 |
1°30' |
7.5 |
3132×800×1180 |
|
2.5×3050 |
2.5 |
3050 |
800 |
47 |
0-650 |
1°30' |
11 |
3642×800×1180 |

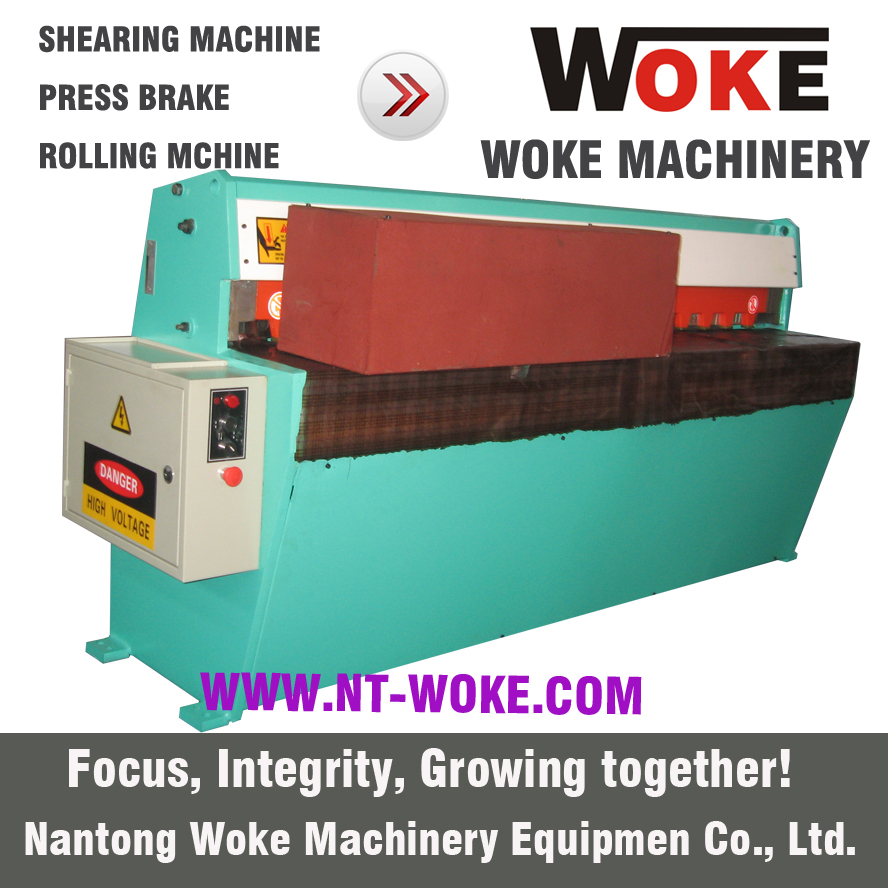

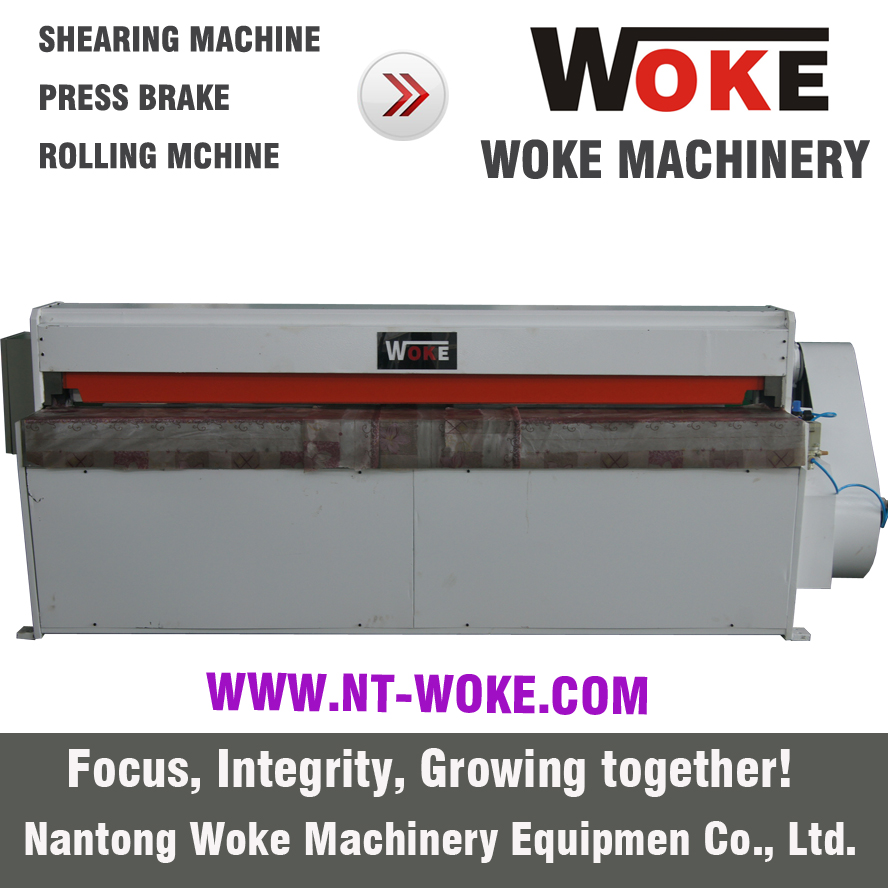

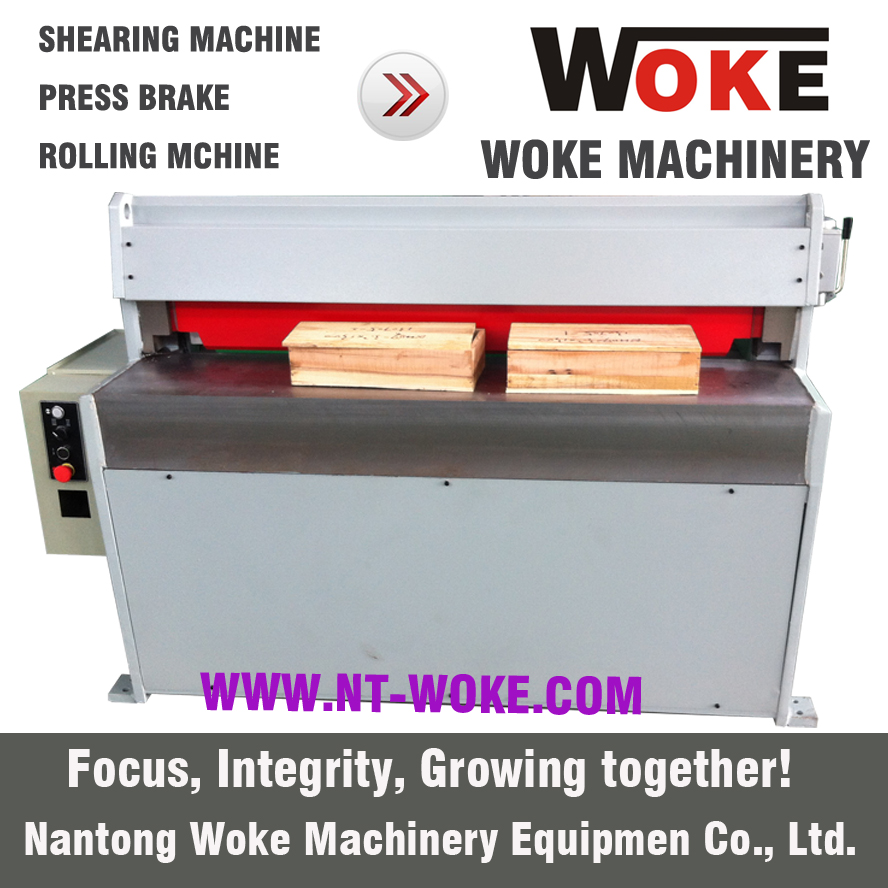

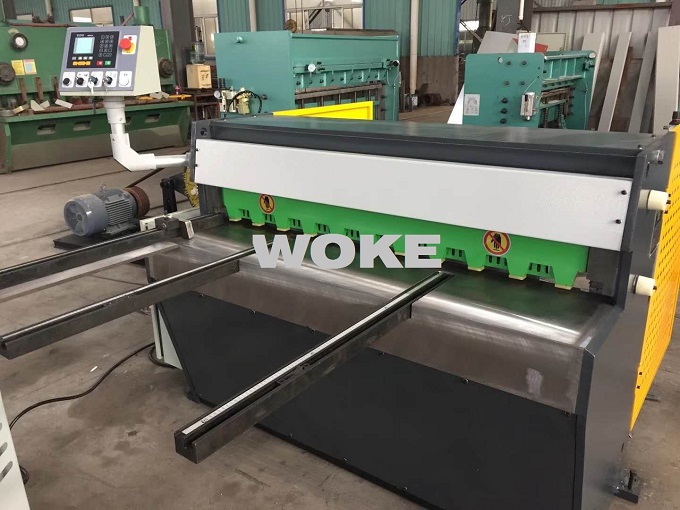

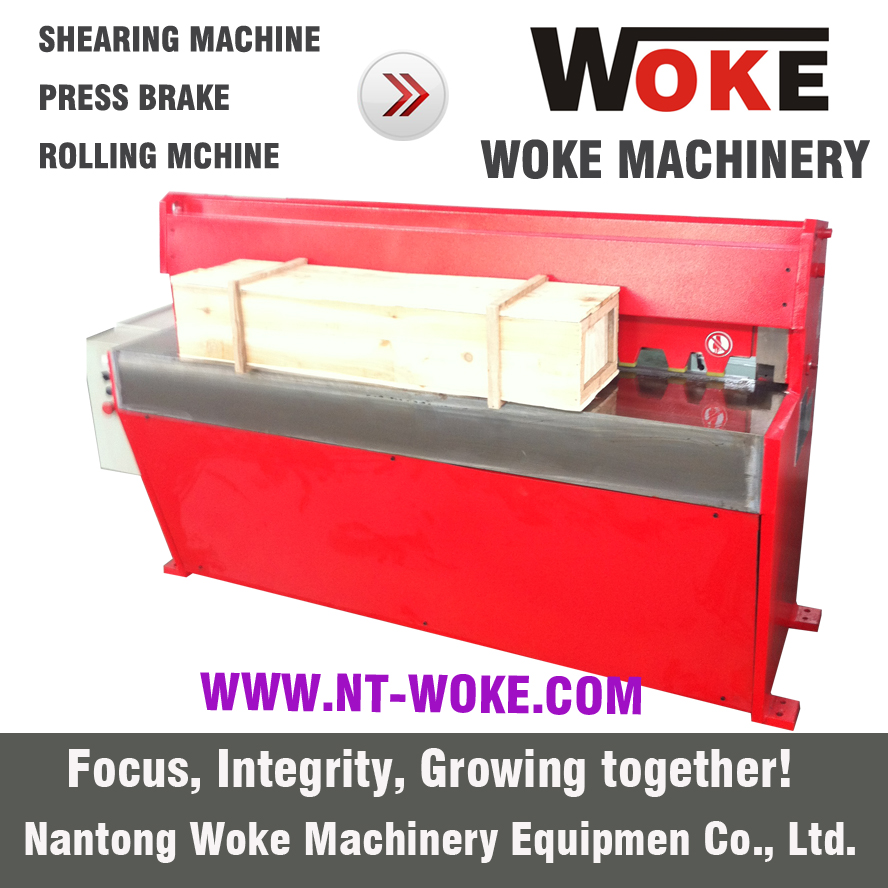

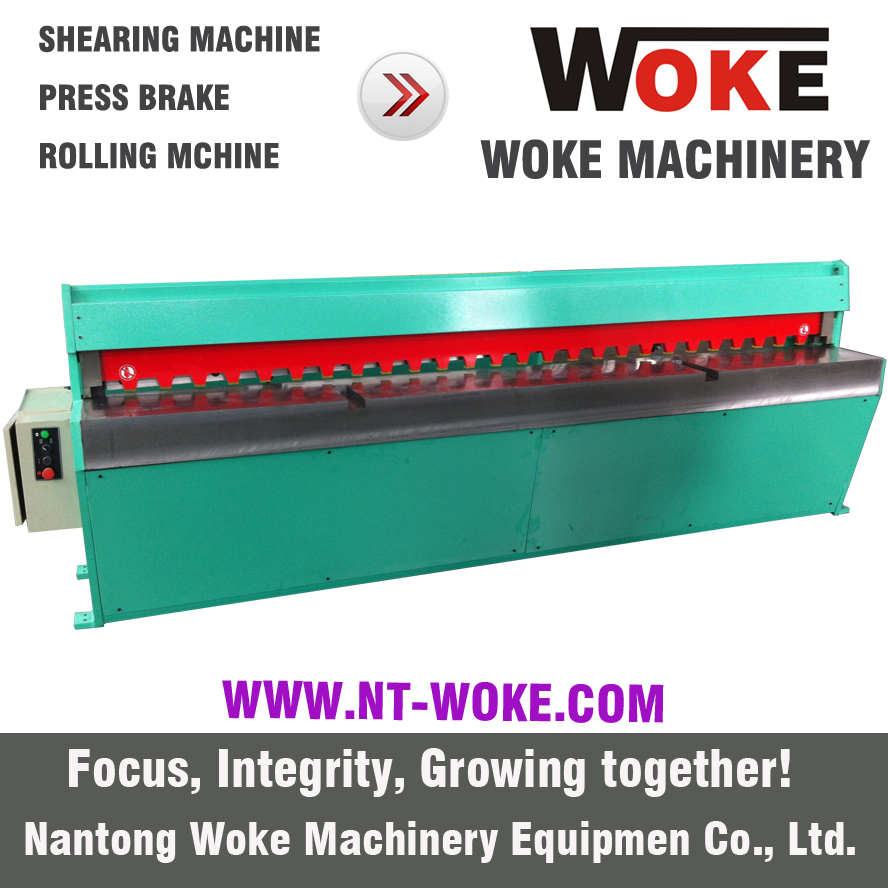

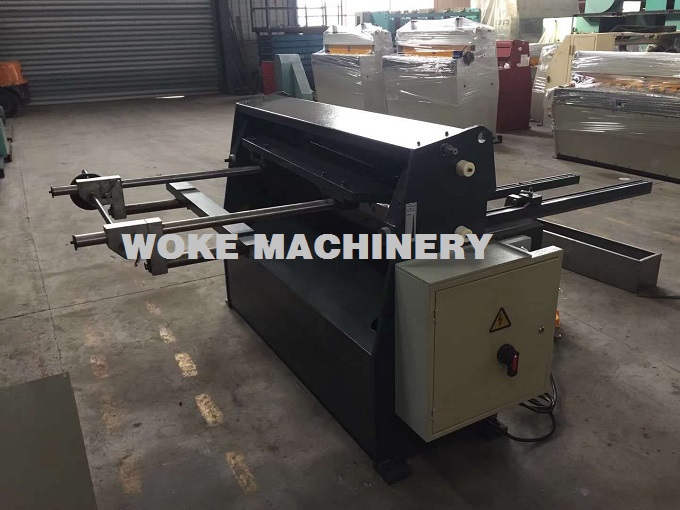

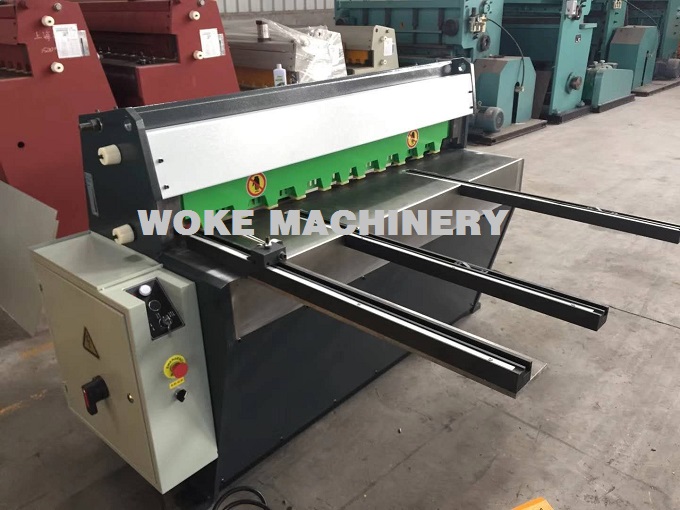

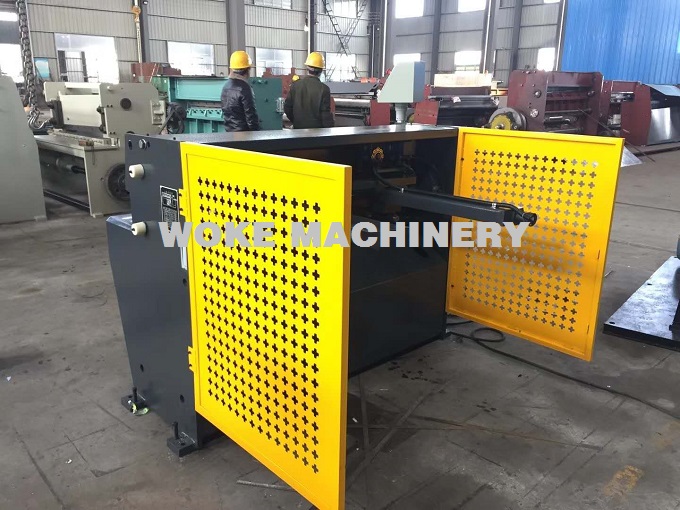

Shearing Machine View
